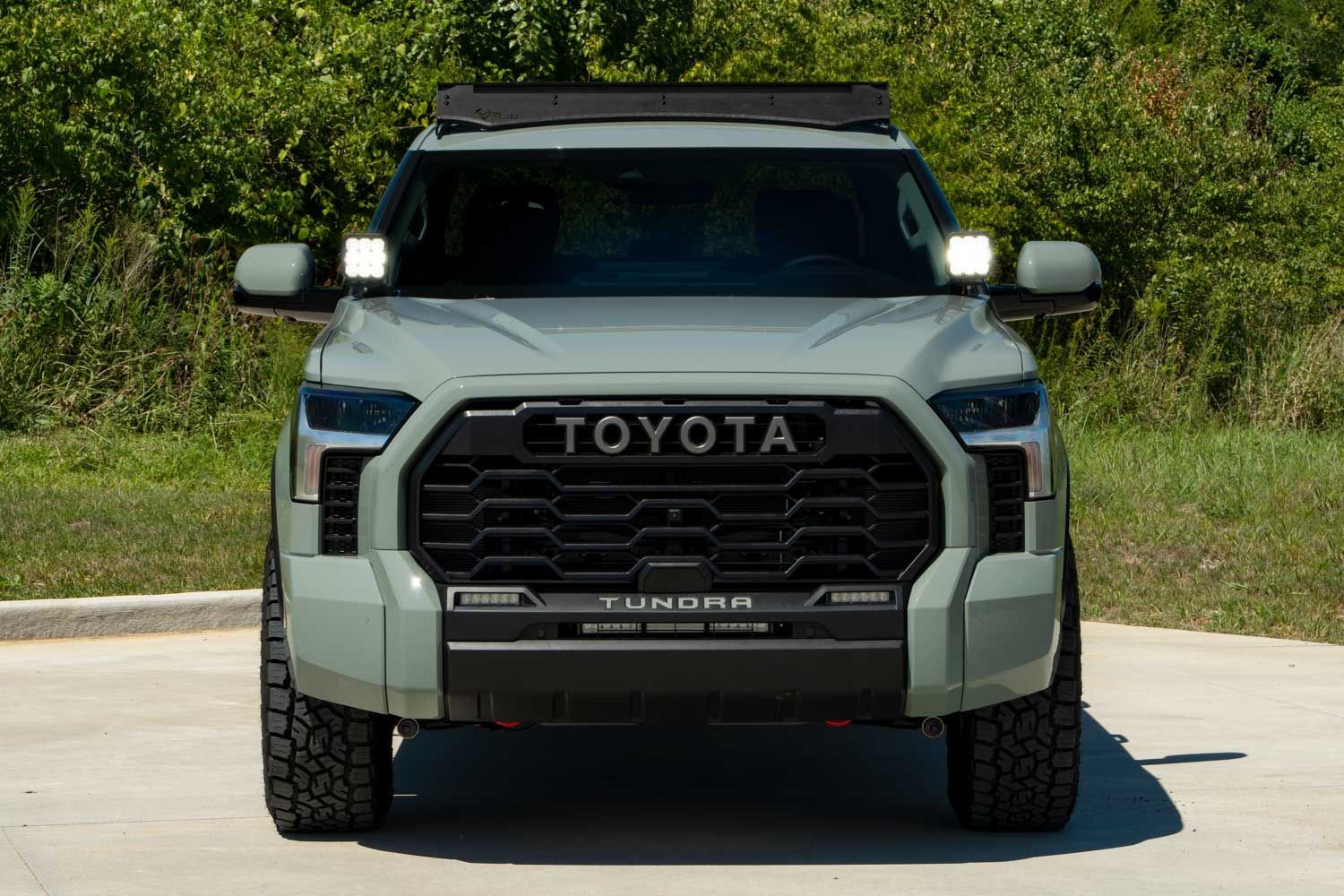

The Stage Series Backlit LED Ditch Light Kit for the 2022-2026 Toyota Tundra provides a substantial increase in light output for your vehicle! This kit allows you to easily mount two SSC2, SS3, or SS5 LED Pod Lights above the hood of your 3rd generation Toyota Tundra!
This Tundra LED Ditch Light Kit features CAD-designed brackets that utilize factory mounting points to install on the 2022+ Toyota Tundra without any cutting or drilling!
The following installation guide will provide you with detailed instructions on how to install the Stage Series Backlit LED Ditch Light Kit for the 2022-2026 Toyota Tundra. Check out our installation video, or continue reading for step-by-step instructions below!
Table of Contents
Installation Video
Installation Tools
- 10mm Wrench
- 12mm Socket
- 12mm Wrench
- Flathead Screwdriver or Plastic Trim Removal Tool
Mounting Instructions

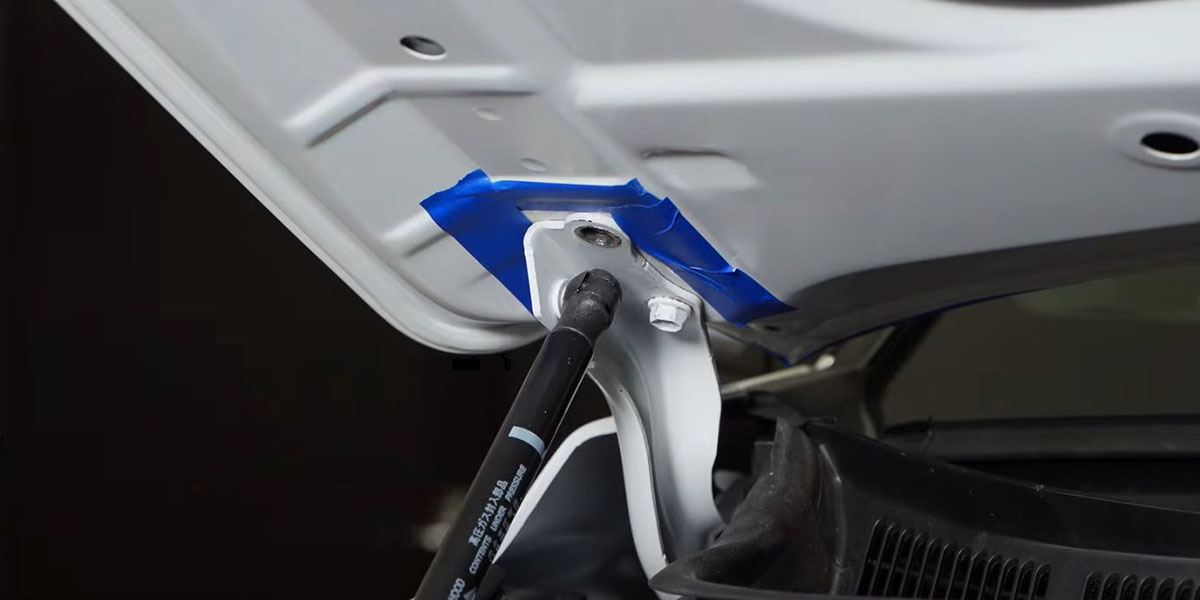

Step 1 - Mark Hood Hinge Locations.
Begin by lifting the hood of the vehicle. Then, on the driver-side of the vehicle, mark the location of the hood hinges with tape and tape the edges of the hood to prevent scratching.

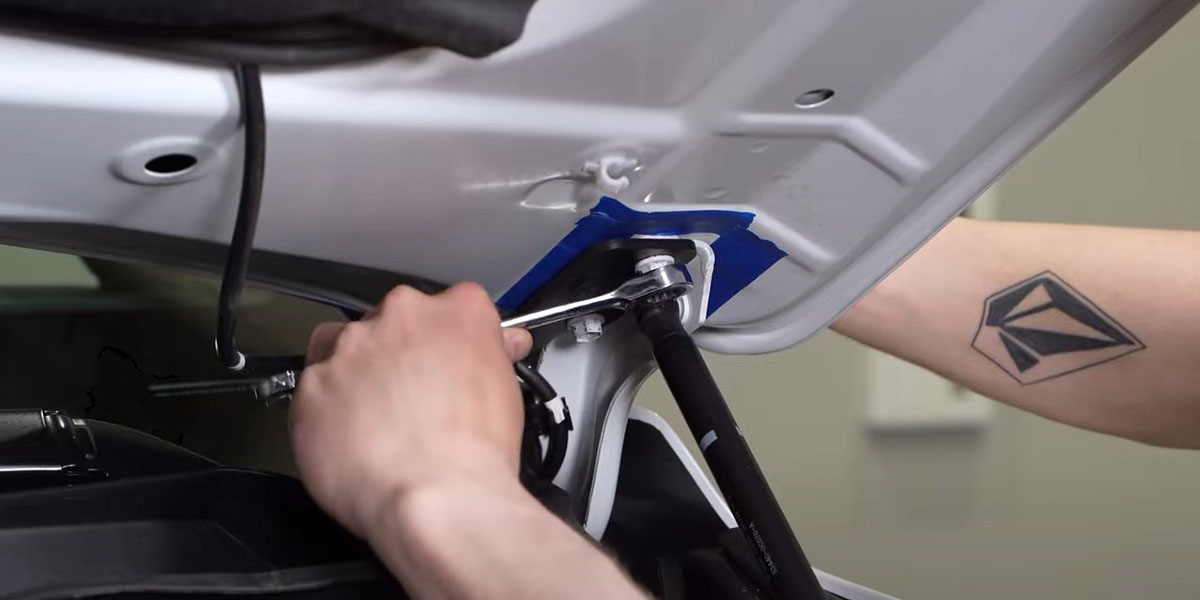

Step 2 - Remove Hinge Bolts.
Using a 12mm wrench, remove the two bolts securing the hood hinge while holding the back of the hood. We recommend having someone else hold the front of the hood to make sure it doesn’t close when the bolts come out.

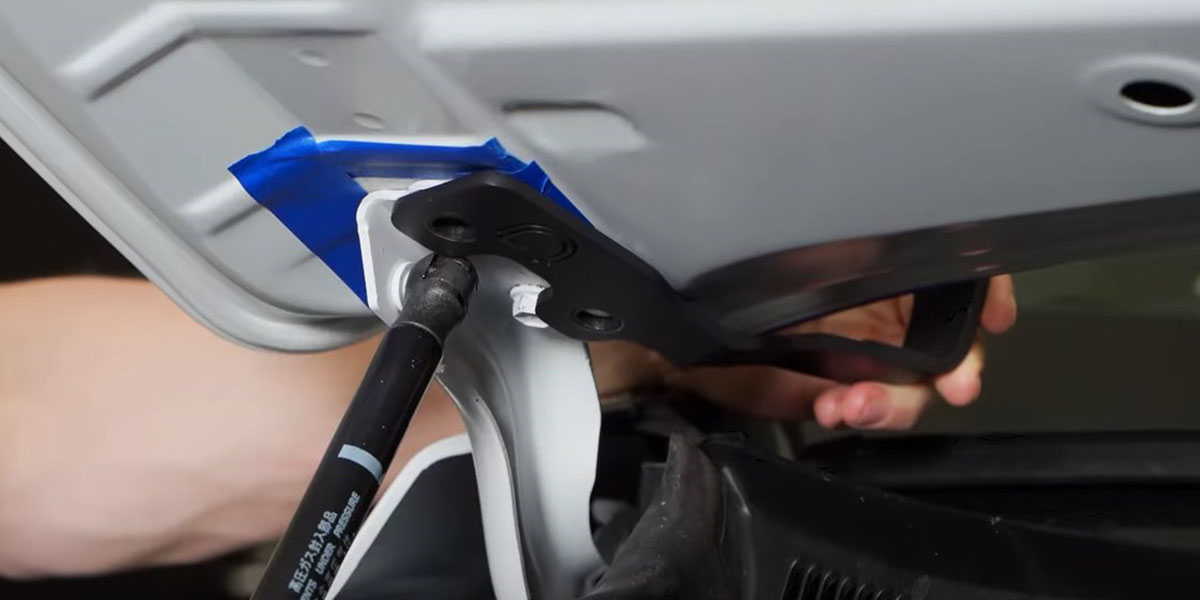

Step 3 - Position Bracket.
Place the ditch light bracket under the hinge and align the holes with the hood hinge. Adjust the bracket to leave a slight gap at the back of the hood before tightening.

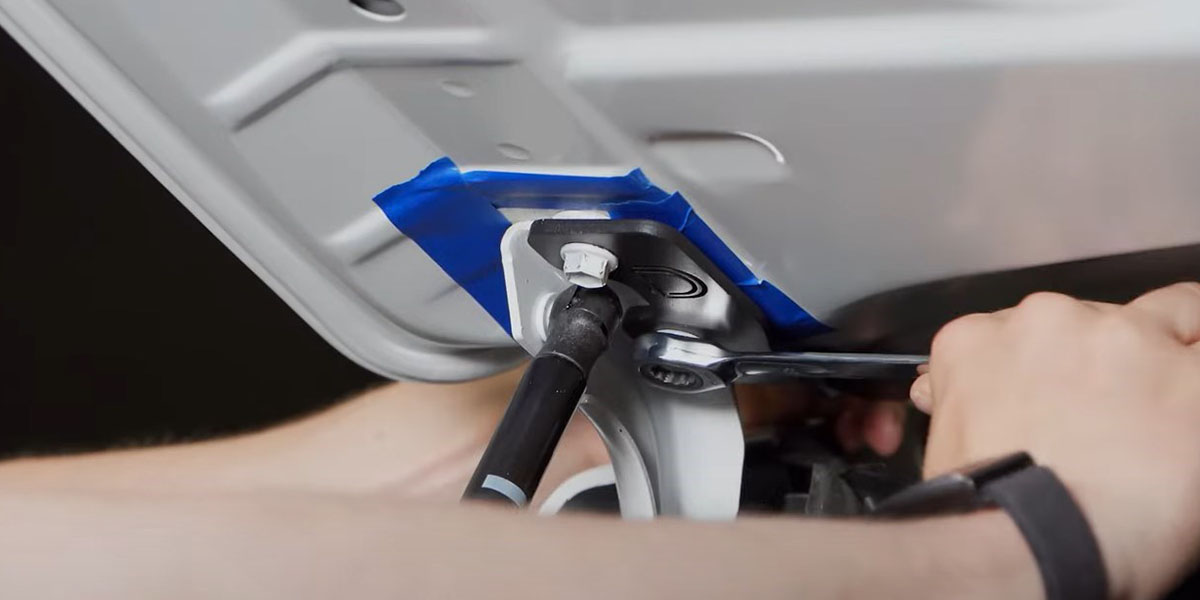

Step 4 - Install Bracket.
Using the 12mm wrench, secure the bracket and hood hinge using the factory 12mm bolts, ensuring the hood hinge lines up with the tape.
Step 5 - Mount Remaining Bracket.
Remove the tape and repeat Steps 1-4 on the passenger side to install the remaining bracket.

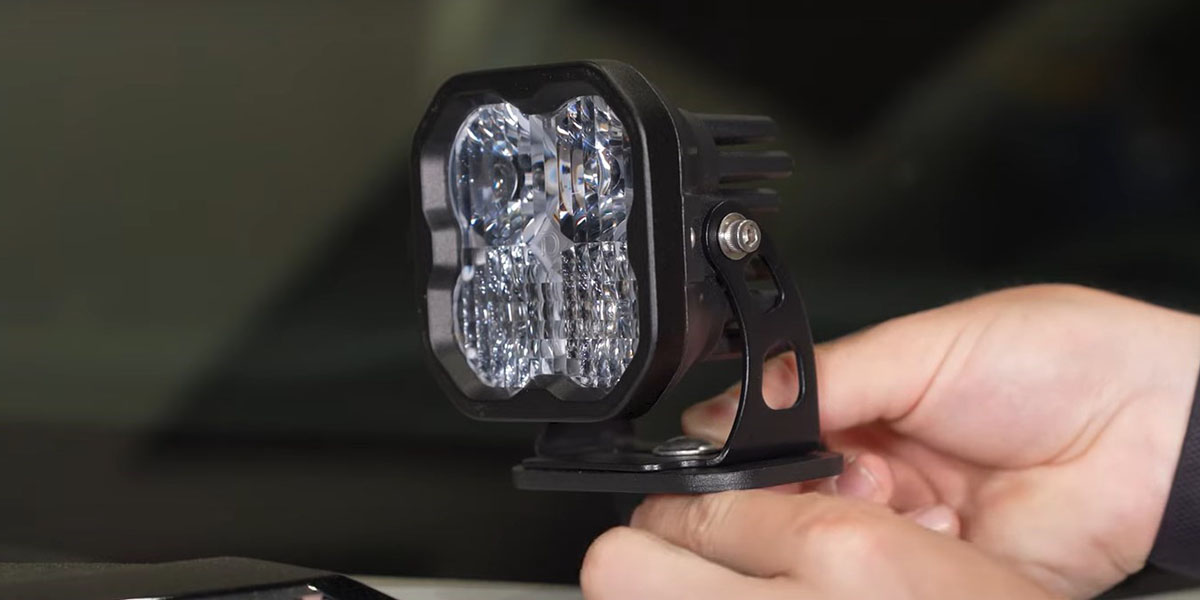

Step 6 - Mount LED Pods.
Once the brackets are mounted to the hood, refer to the Mounting Guide for the SSC2, SS3, or SS5 LED Pods to mount your LED pods onto the brackets.
A small cutout has been designed on each bracket to aid in wire routing. Use the included zip ties to secure the wiring away from the hood hinge.
Note: Do not use automatic car washes with this kit installed.
SS5 Backlight Color Programming
The following programming instructions apply only to ditch light kits equipped with SS5 LED Pods. SS5 LED Pods offer multiple backlight color options, including White (default), Red, Blue, Green, Purple, Yellow, Amber, and Teal.
- Start with all backlight power OFF.
- Cycle backlight power ON and OFF three times within three seconds, spacing each ON press about one second apart.
- After the third cycle, the backlight will enter programming mode.
- Continue cycling power at the same steady pace to scroll through the available colors.
- When the desired color is displayed, leave the backlight ON.
- After five seconds, the color will save automatically and exit programming mode.
- Turn power OFF.
The selected color will appear any time backlight power is applied during normal operation.
SS5 Backlight Color Reset
The following reset procedure applies only to ditch light kits equipped with SS5 LED Pods. If multiple SS5 LED Pods are connected to the same backlight circuit and the colors become unsynchronized, perform the following reset procedure.
- Enter backlight programming mode by cycling power ON and OFF three times, using the same one-second timing.
- Continue cycling power through all available colors twice. This requires at least sixteen total power cycles.
- After all colors have displayed twice, all connected lights will reset to White.
- Leave the backlight ON for five seconds to save the reset.
- Program the desired backlight color as outlined above if needed.
Questions About the Installation?
If you have any questions or issues installing the Stage Series Backlit LED Ditch Light Kit for the 2022-2026 Toyota Tundra, please contact us for further assistance.
Where Can I Buy a Stage Series Backlit LED Ditch Light Kit for the 2022-2026 Toyota Tundra?
If you’re ready to upgrade your 2022-2026 Toyota Tundra with a Stage Series Backlit LED Ditch Light Kit, you can purchase one by clicking here or using our dealer locator to find a dealer near you.
If you are looking to add additional Off-Road LED Lights to your Tundra, we have a variety of LED Light bars and Pod Light kits here!
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD7389, DD7390, DD7391, DD7392, DD7393, DD7394, DD7395, DD7396, DD7397, DD7398, DD7399, DD7400, DD7388P
