The SS3 IR LED Pod provides controllable infrared illumination for compatible night vision systems in a durable universal pod. Developed originally for military customers, the IR lineup underwent approximately 18 months of military field testing before its retail introduction. This installation guide will provide you with detailed instructions on how to install the SS3 IR LED Pod. Continue reading for step-by-step instructions below!
Table of Contents
- Important IR Safety
- What's Included
- Installation Tools
- Installation Instructions
- Wiring Instructions
- Operation and Dimming
- Aiming Instructions
- Final Operation Check
- Questions About the Installation?
- Where Can I Buy the SS3 IR LED Pod?
Important IR Safety
WARNING: Infrared output falls outside the visible-light spectrum but can still cause eye injury. Never stare directly into an operating IR light or view it at close range through an optical device. Do not assume the light is safe simply because its output is difficult or impossible to see with the naked eye.
What's Included
- One SS3 IR LED Pod in the selected Sport or Pro power level and 850nm or 940nm wavelength
- Standard SS3 mounting bracket and hardware
- One 4-pin DT-style female pigtail with three 10cm bare leads
The SS3 IR uses an IR-specific filtered lens and is offered only with the Combo optic. The physical mounting process remains the same across the Sport and Pro configurations and both wavelengths.
Installation Tools
- 1/2" wrench
- 5/32" Allen key
- Basic wiring tools appropriate for the selected installation
Installation Instructions

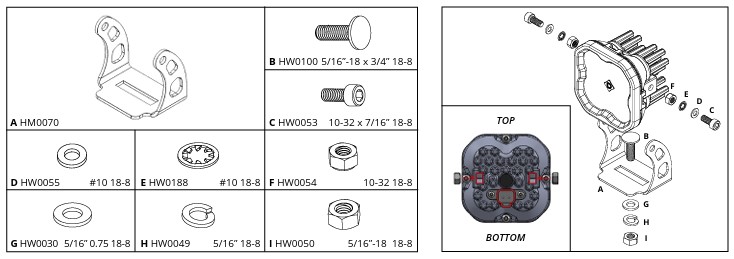

Step 1 — Assemble the mounting bracket
Assemble the SS3 IR pod with the included standard bracket and mounting hardware as shown. Leave the side hardware slightly loose so the pod can be aimed after mounting.
Step 2 — Choose a mounting location
Select a secure mounting point that provides clearance for the pod, bracket, connector, and wiring. Confirm that the mounting surface and any application-specific hardware can support the light before drilling or fastening.

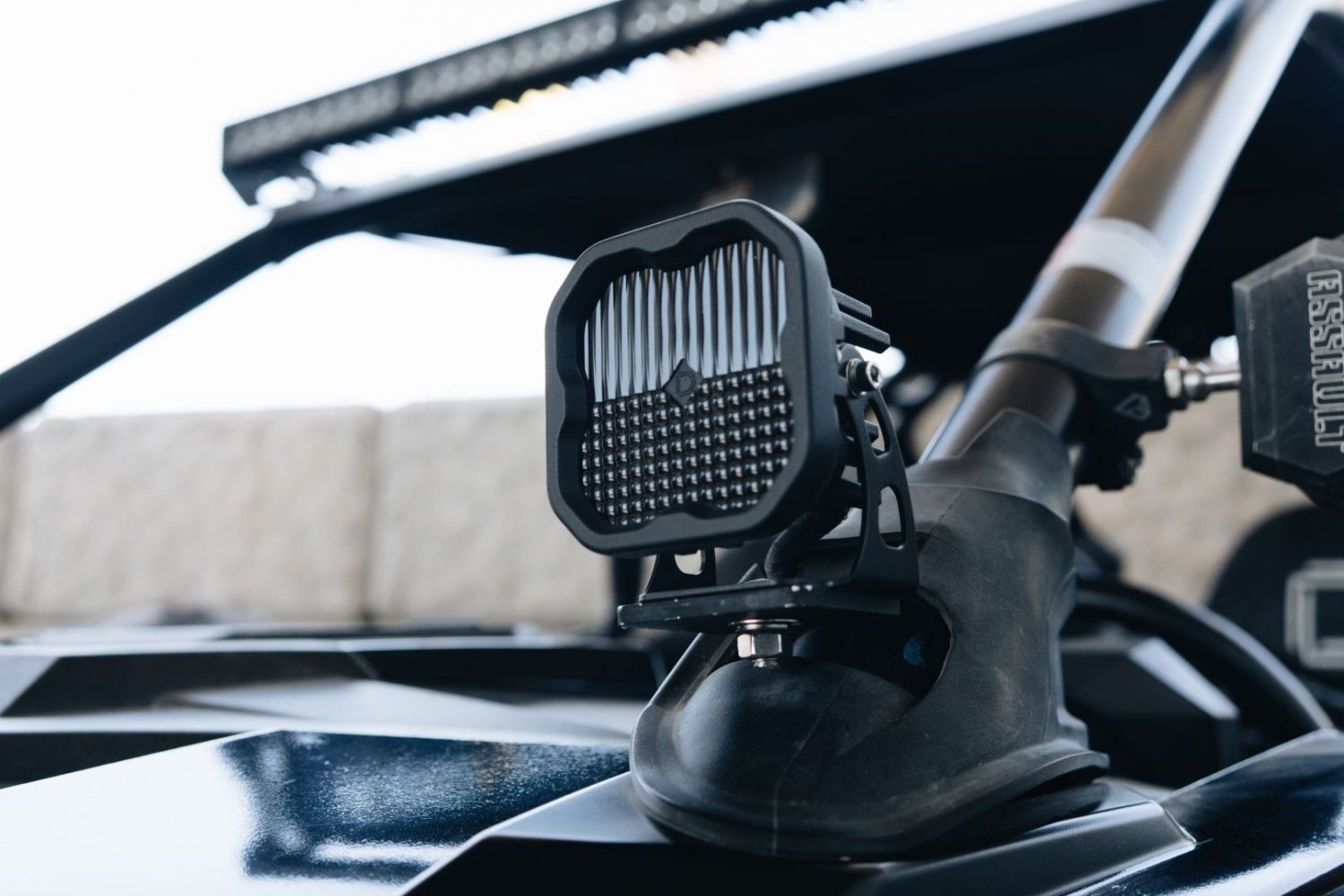

Step 3 — Secure the pod
Attach the bracket to the selected mounting point using suitable mounting hardware. Keep the adjustment hardware loose enough for final aiming, but make sure the assembly remains secure.
Wiring Instructions
The SS3 IR operates from 9 to 16V and includes a familiar DT-style connector and three-wire pigtail. Unlike a standard visible-light SS3, the red and blue inputs control high and low IR output. They do not control a visible main beam and backlight.
- Red wire: High IR power
- Black wire: Ground
- Blue wire: Low IR power
Connect the pigtail to the pod, then route and secure the wiring away from heat, sharp edges, and moving components. Connect the red, black, and blue leads to a properly fused control system suitable for the installation. Do not apply power outside the 9 to 16V operating range.
Operation and Dimming
The red and blue inputs provide separate high and low IR power modes. Both modes support PWM and variable-voltage dimming, allowing you to reduce the output for the environment or night vision setup. This makes it possible to select a configuration with enough maximum output for the intended use, including a Pro configuration, and lower the output when less illumination is appropriate.
SS3 IR is available in 850nm and 940nm. The 850nm version may produce a faint red glow at the emitter because its wavelength is closer to the visible spectrum. The 940nm version produces less visible signature to the naked eye. Night vision sensitivity varies by device, so confirm performance with the specific equipment in use rather than assuming one wavelength will always appear brighter.
Aiming Instructions
Step 4 — Aim and tighten the pod
Use a compatible night vision device to adjust the Combo beam to the desired position. Once the pod is aimed, securely tighten the bracket and adjustment hardware.
Final Operation Check
Step 5 — Verify operation
From a safe position, use a compatible night vision device to confirm high power, low power, and any connected dimming controls operate as intended. Check that the wiring remains secure and clear of heat, sharp edges, and moving components.
The installation is now complete. Enjoy your new SS3 IR LED Pod!
Questions About the Installation?
If you have any questions about installing the SS3 IR LED Pod, contact us via our support page.
Where Can I Buy the SS3 IR LED Pod?
If you're ready to upgrade your auxiliary-lighting setup with the SS3 IR LED Pod, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKU: DD8918S, DD8920S, DD7774S, DD8919S, DD8918P, DD8920P, DD7774P, DD8919P
