SS3 3” LED Pod Installation and Product Guide

The Diode Dynamics SS3 3” LED Pod features advanced TIR optics, high-intensity LED emitters, and durable aluminum construction. This guide outlines specifications, mounting instructions, wiring information, and beam pattern options for SS3 pods with the Standard Bezel.

Table of Contents

• Features
• Specifications
• Mounting Instructions
• Wiring Information
• Beam Patterns & Output
• Dimensions
• Questions About the SS3 3” LED Pod?
• Where Can I Buy the SS3 3” LED Pod (Standard Bezel)?

Features

• Advanced TIR (Total Internal Reflection) optics
• High-intensity LED chips
• Durable powdercoated aluminum construction
• Integrated Deutsch-style connector
• Pin fin heatsink design

Specifications

Input Voltage: 9–30V

Input Power (Main Beam):

• SS3 Sport: 14.5W
• SS3 Pro: 36W
• SS3 Max: 38.5W

Input Power (Backlight): 0.4W

Current Draw @ 12.8V:

• Sport: 1.1A (main), 0.03A (backlight)
• Pro: 2.7A (main), 0.03A (backlight)
• Max: 3.0A (main), 0.03A (backlight)

Operating Temperature: -40°F to 185°F

Weight: 2.5 lbs (single), 3.5 lbs (pair)

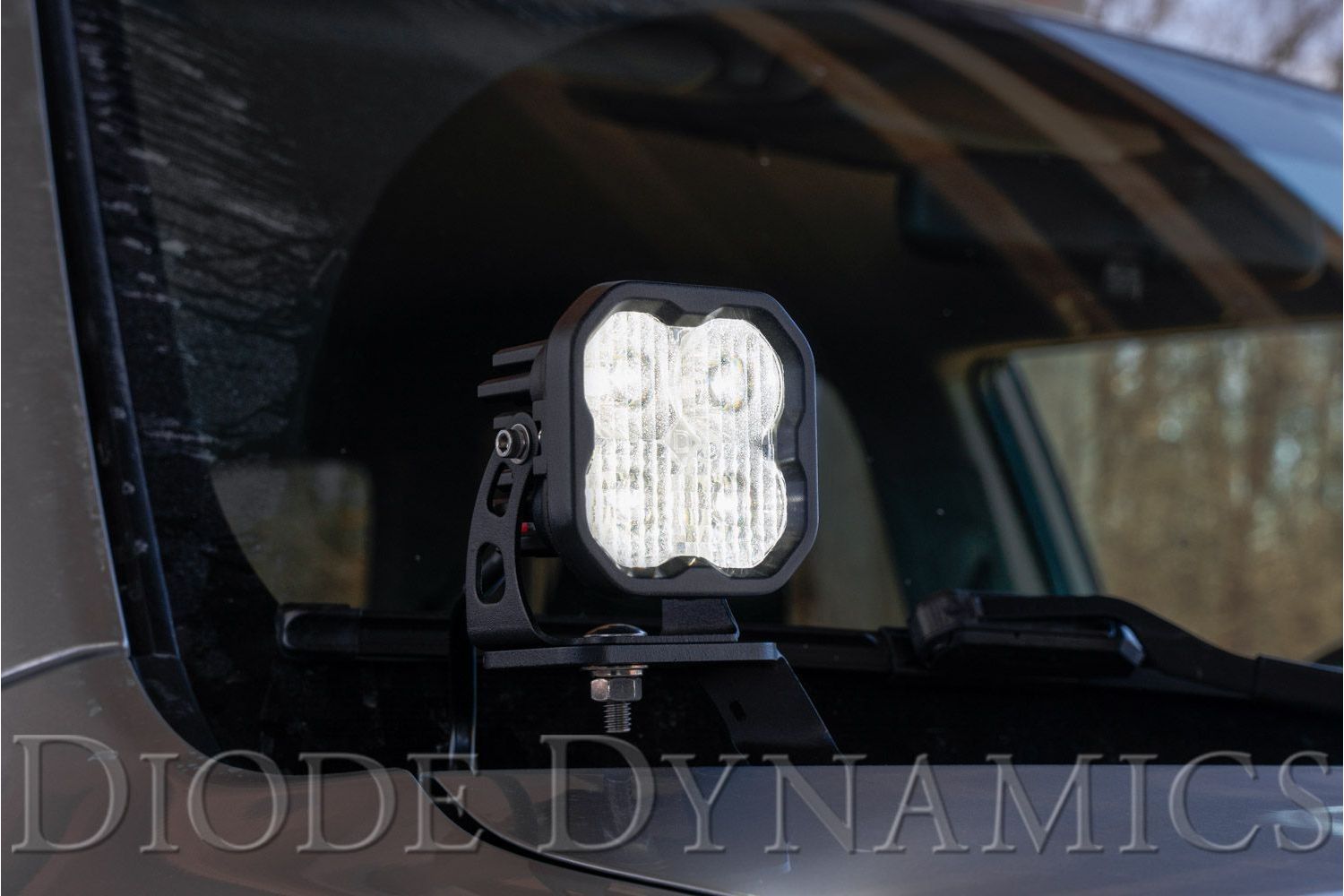

Mounting Instructions

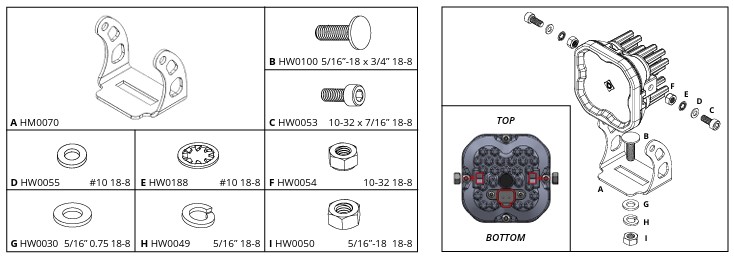

The SS3 pod includes mounting hardware. The most common mounting style is shown in the diagram.

Tools Required: 1/2” wrench and 5/32” Allen key

Stage Series pods are compatible with most standard mounting brackets on the market.

Wiring Information

The SS3 uses a 3-pin Deutsch-style connector:

• Pin 1 (Red): Main Beam Power – Connect to positive supply
• Pin 2 (Black): Ground – Connect to negative or common ground
• Pin 3 (Blue): Backlight Power – Connect to desired function

Important: This auxiliary lamp draws high current and requires adequately sized wiring for safe operation. If not using a Diode Dynamics wiring harness, use 16 AWG wire or larger. All power sources must be properly fused and capable of safely delivering required current.

Beam Patterns & Output

The SS3 is available in multiple beam patterns:

• Driving (SAE)
• Fog / Wide
• Flood
• Spot
• Combo

Available in White (6000K) and Yellow (3000K), depending on configuration.

Measured output varies by Sport, Pro, and Max tiers. Detailed candela (cd), lux, and beam distance data is available in the official output chart.

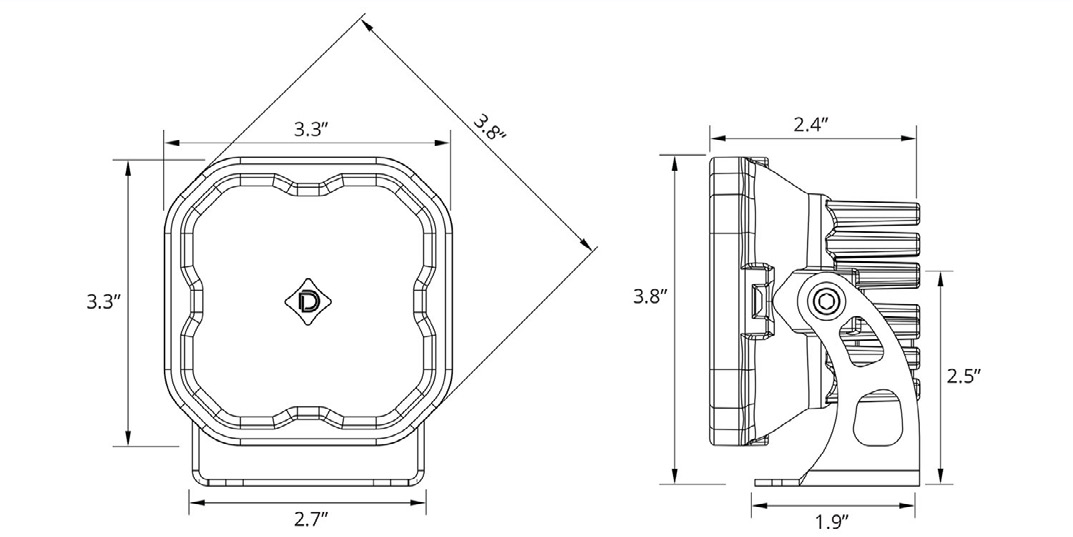

Dimensions

• Width: 3.3”
• Height: 3.3”
• Depth: 3.8”
• Mount width: 2.7”

Questions About the SS3 3” LED Pod?

If you have any questions about the SS3 3” LED Pod (Standard Bezel) , contact us via our support page.

Where Can I Buy the SS3 3” LED Pod (Standard Bezel)?

Visit DiodeDynamics.com or use our Dealer Locator.

SKU Note: This guide applies to all SS3 3” LED Pod (Standard Bezel) configurations. Due to the extensive number of beam pattern, color, and performance variants, individual SKUs are not listed here.
