The Diode Dynamics SS3 SAE/DOT Type CGX Fog Light Kit is CAD-designed to use existing mounting points and is compatible with many Toyota and Lexus models. This guide walks through bracket assembly, installation, wiring, and proper aiming of your new SS3 fog lights.
Table of Contents
- Installation Tools
- Installation Instructions
- Aiming Instructions
- Questions About the Installation?
- Where Can I Buy the SS3 SAE/DOT Type CGX Fog Light Kit?
Installation Tools
- Phillips head screwdriver
- Trim removal tool
- 5/32” Allen key
- Wire strippers/crimpers (if tapping a circuit for backlight power)
Time Required: Approximately 1–2 hours.
Installation Instructions
Step 1 – Assemble bracket to pod

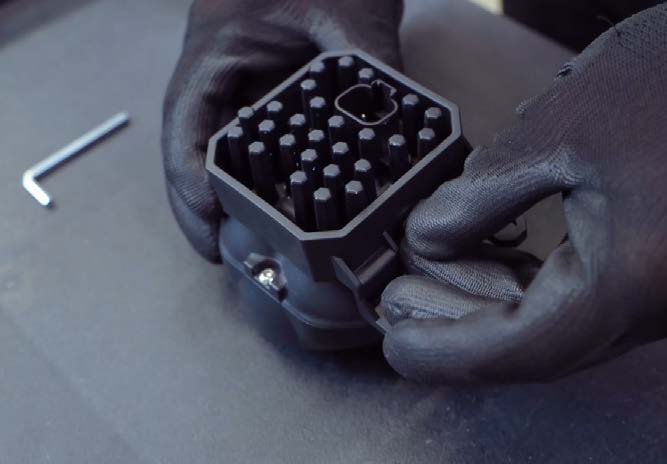

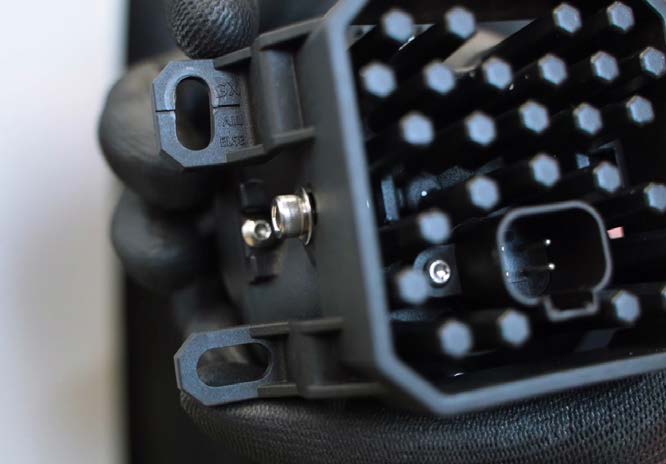

Install the supplied nuts into the pod housing with the nylon facing inward. Attach the bracket to the pod using the supplied screws and washers. Ensure the bracket is in the correct orientation (TOP and BOTTOM as shown in the guide).
Tighten the screws so the pod retains its position, but can pivot with force for aiming.
Step 2 – Access factory fog light

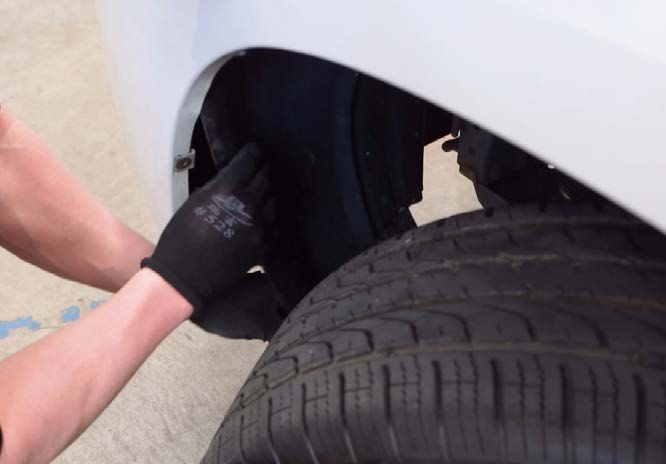

Turn the wheel outward to gain access to the back of the bumper. Remove the screws or clips securing the fender liner to the bumper. Gently peel back the fender liner and unplug the factory fog light connector.
Step 3 – Remove factory fog light housing

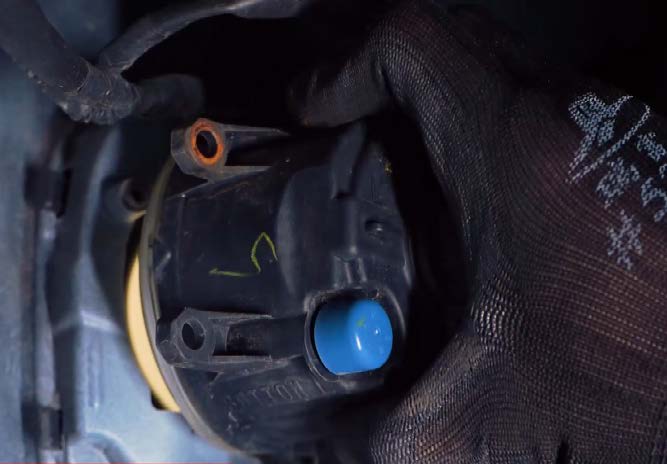

Using a Phillips head screwdriver, remove the screws securing the factory fog light housing to the back of the bumper. Remove the factory fog light housing. The factory screws will be reused.
Step 4 – Install SS3 bracket and pod assembly

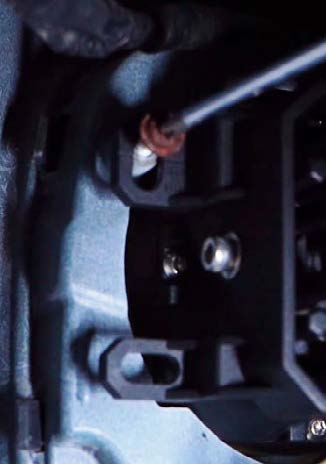

Install your assembled bracket and pod onto the vehicle by securing the factory screws with a Phillips head screwdriver.

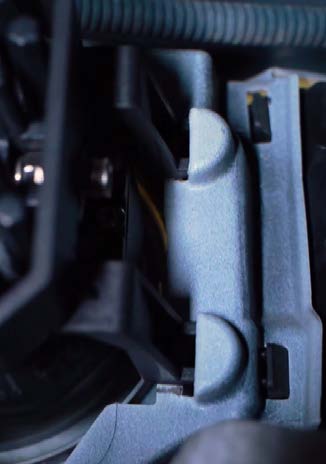

LEXUS GX460 VEHICLES: While installing the lamp, flex the left side tabs outward to insert them into the mounting pockets. Use the top portion of the slot on the bracket to secure the factory screw.
TOYOTA VEHICLES: While installing the lamp, flex the left side tabs outward to insert them into the mounting pockets. Use the bottom portion of the slot on the bracket to secure the factory screw.
Step 5 – Connect wiring
Use the included wire adapters to connect the pod to the vehicle wiring harness. Test function. If the light does not turn on, try flipping the connector 180°.
If equipped with backlight functionality, connect the backlight power wire to a fused 12V source (commonly parking light or sidemarker circuit). T-Taps are included for this purpose.
NOTE: Power source must be fused. Do not connect directly to vehicle battery.
Step 6 – Repeat on opposite side
Repeat the steps on the other side of the vehicle.
Aiming Instructions
Step 7 – Position vehicle
Park your vehicle 25 feet away from a wall or garage door on a level surface.
Step 8 – Loosen adjustment bolts
Loosen the 5/32” Allen bolts on each side of your SS3 pod, just enough to allow adjustment.
Step 9 – Measure mounting height
Measure the distance between the ground and the center of your SS3 pod. This is your mounting height.
Step 10 – Mark cutoff line
Mark the mounting height on the wall using tape. Add another piece of tape four inches below the mounting height. This is your fog light cutoff line.
Step 11 – Aim the pods
Aim your SS3 pods so that the top of the beam pattern is on the cutoff line mark.
Step 12 – Tighten hardware
Tighten the 5/32” Allen bolts back down to complete the installation. Do not overtighten or use power tools to torque them down.
