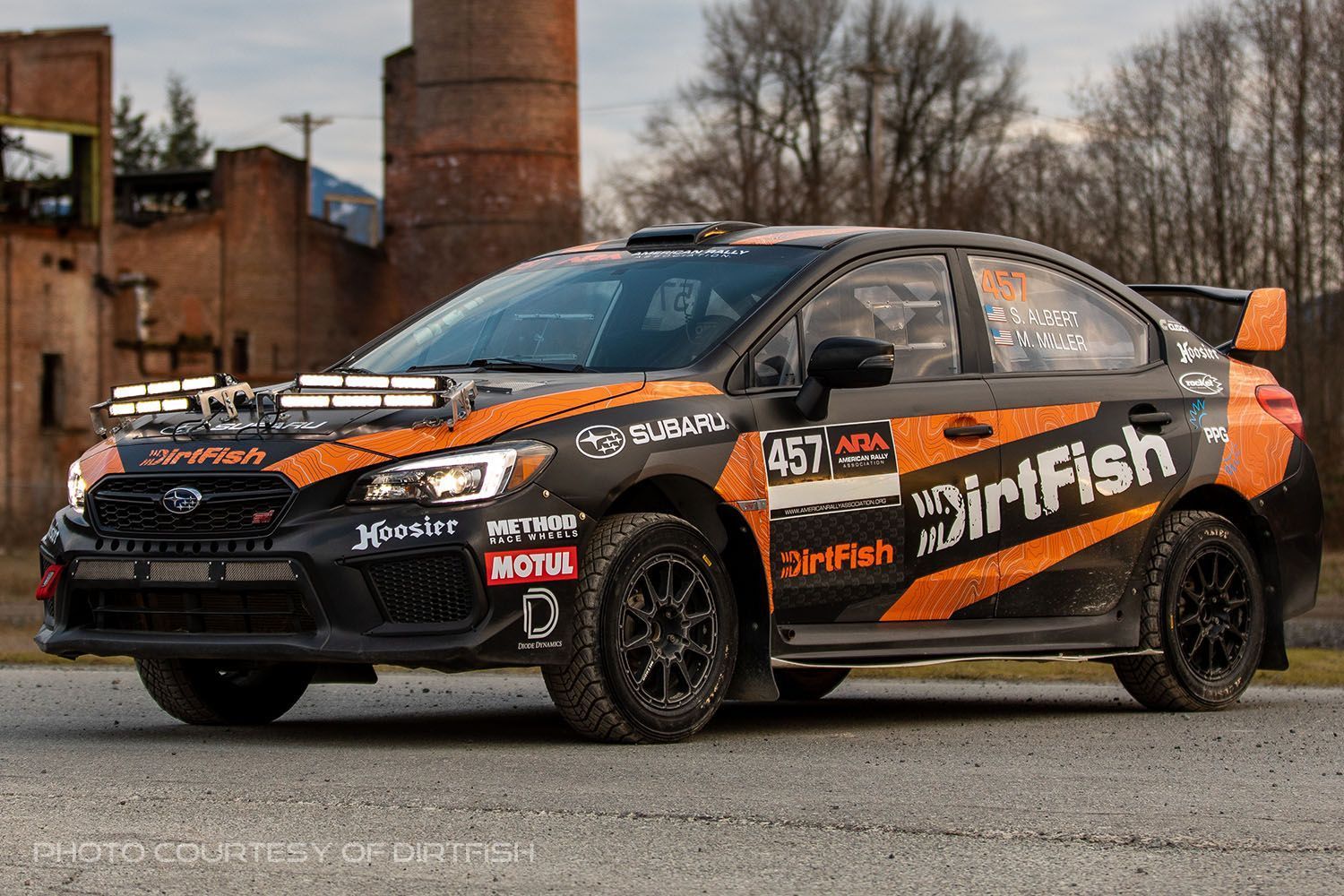

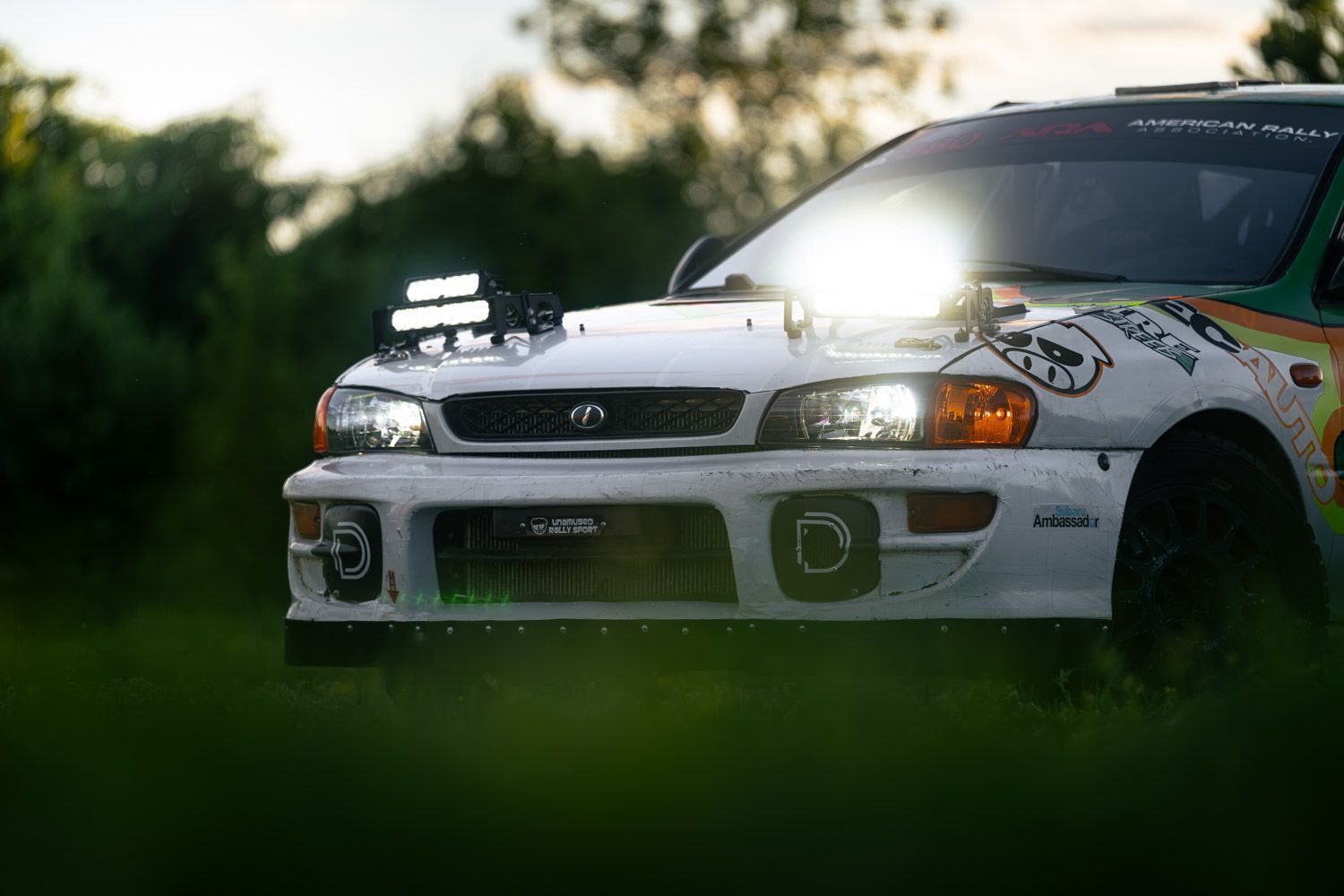

The Diode Dynamics Motorsports LED Light Bar Bracket Kit is designed to mount Stage Series LED light bars directly to the hood, providing a secure, adjustable mounting solution for motorsports and off-road applications. Built for durability and precise fitment, this kit allows for clean installation and easy aiming.
This guide walks through the installation process for the Motorsports Bracket Kit, including bracket assembly, drilling, mounting, and final adjustment.
Table of Contents
- Installation Video
- Installation Tools
- Installation Instructions
- Questions About the Installation?
- Where Can I Buy This Kit?
Installation Video
Installation Tools
- 9/64” drill bit
- 11/64” drill bit
- Drill
- 3/32” hex key
- 11/32” socket
- Basic hand tools
Time Required: Approximately 1–2 hours.
Installation Instructions
Step 1 – Assemble the brackets and light bars
Assemble the motorsports brackets and attach the Stage Series LED light bars as shown in the included diagram. Determine the desired mounting location on the hood.
We recommend identifying the mounting position with the hood installed on the vehicle, then removing the hood for drilling and bracket installation.
Step 2 – Drill mounting holes
Drill a pilot hole through the hood using a 9/64” drill bit. Once the pilot hole is complete, drill through the same hole using an 11/64” drill bit.
Step 3 – Install mounting hardware
Install the supplied mounting hardware into the drilled hole. Secure the hardware using a 3/32” hex key and an 11/32” socket.
Important: Do not overtighten the hardware, as excessive torque can dent the hood.
Step 4 – Mount the brackets to the hood
Mount the assembled brackets onto the hood. To secure the latch mechanism, apply downward pressure on the bracket while sliding the latch forward into place.
Step 5 – Adjust and test
Adjust the height of the brackets so all bumpers are contacting the hood evenly. Set the light bars to the desired angle, then wire the light bars and test thoroughly to complete the installation.
Questions About the Installation?
If you have any questions about installing the Diode Dynamics Motorsports LED Light Bar Bracket Kit, contact us via our support page.
Where Can I Buy the Motorsports LED Light Bar Bracket Kit?
If you're ready to add hood-mounted lighting using the Diode Dynamics Motorsports LED Light Bar Bracket Kit, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD6076, DD6115
