Stage Series Motorsports LED Bracket Kit

Motorsports LED Light Bar Kit

  • Rally-designed light bar mounting solution.
  • Mount up to four 12" or 18" Stage Series light bars.
  • Fully customizable, adjust light bar angle and position.
  • Aligns to hood contour.
  • Quick release mounts for night stages with DZUS sliding lock fasteners.
  • Highly durable 12 gauge powdercoated steel construction.

Overview

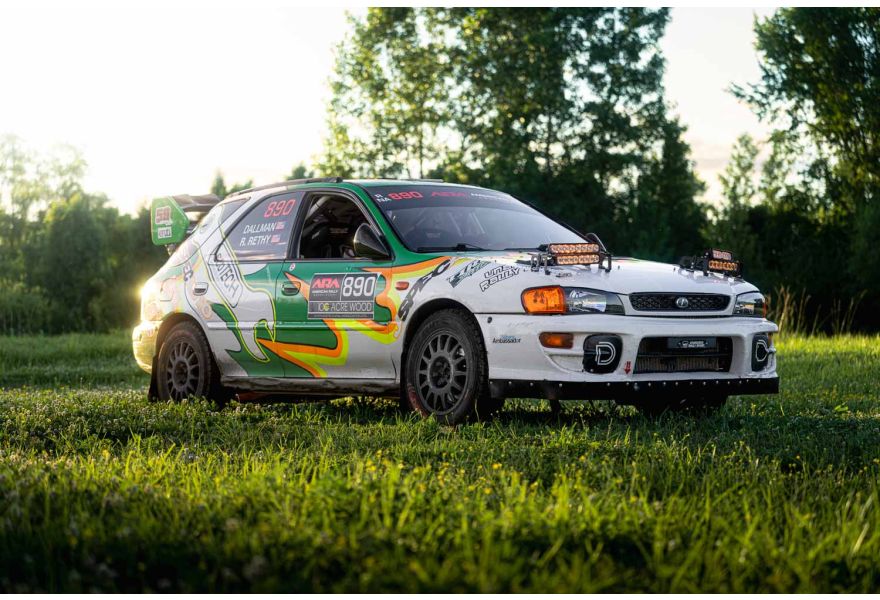

Designed for racing. The Motorsports LED Light Bar Kit from Diode Dynamics allows you to mount up to four SS12 Stage Series 12" Light Bars or SS18 Stage Series 18" Light Bar on the hood of your vehicle. The whole kit includes everything needed for installation and uses stainless steel hardware for long lasting durability, including custom-made stainless rubber bumpers, which absorb vibration and prevent any damage to the hood. These purpose-built brackets were CAD-designed to provide the performance you need to Go Faster, and See Further.

Fully customizable. With the modular design, you can adjust the setup and angling for your specific race conditions and preference. Each of the lightbars are adjustable in output angle and position, and you can also adjust the brackets themselves to align with the contour of your hood. The Stage Series lineup also allows you to swap out optics and amber or white colors, for any need. The light bar kit includes four Wide Clear lenses. If you would like to order amber lenses, click HERE.

A popular option is to aim the top bars straight ahead, and the lower bars angled more to the side. With the included lenses, you also have the option to convert the outer side of each bar to a Wide optic. This setup is common for a stage with a lot of R1s and L1s, and any off-camber turns, to fill in light where you need it. For the straights, we recommend keeping most of the bars in the Driving optic, which is a focused, but not pencil-beam pattern, to punch far ahead while not blowing out your vision with too much foreground light.

Quick mounting for night stages. This kit utilizes Dzus sliding latch fasteners to mount the setup to your vehicle. These provide reliable, strong attachment, while still offering quick installation for night stages. You'll just need to install them to the hood with a few rivets, and you'll be able to throw your lightbars on within seconds during service.

Designed For Performance. Designed from the start for competition racing, and more specifically night stage rally races, Diode Dynamics Stage Series light bars have been engineered for maximum functionality, with compact size, custom-engineered TIR optics, and a useful beam pattern, all in a highly durable package. Our light bars shine light in a highly-functional and useful beam pattern, much more focused than older LEDs on the market.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:
Brackets Only:
  • Full bracket set
  • Eight (8) 8-32" Stainless Steel Hex Nuts
  • Four (4) 8-32" Stainless Steel Hex Screws
  • Eight (8) Dzus 1500 Series Spacers
  • Eight (8) M6 Custom-Designed Bumper Feet
  • Twenty-four (24) M6 Stainless Steel Flange Bolts
  • Twenty-four (24) M6 Stainless Steel Flange Nuts
  • Installation Guide
Full Light Bar Kit:
  • Full bracket set
  • Four (4) SS12 12" or SS18 18" Stage Series Light Bar
  • One (1) heavy-duty single-output relay harness
  • Two (2) DT splitters
  • Four (4) SS Wide Clear Lenses
  • Eight (8) 8-32" Stainless Steel Hex Nuts
  • Four (4) 8-32" Stainless Steel Hex Screws
  • Eight (8) Dzus 1500 Series Spacers
  • Eight (8) M6 Custom-Designed Bumper Feet
  • Twenty-four (24) M6 Stainless Steel Flange Bolts
  • Twenty-four (24) M6 Stainless Steel Flange Nuts
  • Installation Guide
Quantity: Full Set (Four total)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

WARNING: Cancer and Reproductive Harm - www.P65Warnings.ca.gov


Find an error on this page? Please let us know!

Specifications

Lens Color/Optics

Peak Beam Intensity
(candela)

Illuminance
(lux @ 10m)
Measured Output
(lumens)
Raw Output
(lumens)
Output Color
SS12 White Driving 110,000 cd 1,110 lux 2,800 lm 4,560 lm 6000K White
SS18 White Driving 165,000 cd 1,650 lux 4,200 lm 6,840 lm 6000K White
Color Temp (CCT): 6000K
Beam Angle: Driving, 20°x8°
Power (watts): 79.8
Operating Voltage: 9-24V
Current (amps @ 13.2V): 5.7
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Luxeon Z ES
Connector(s): Deutsch DT Input
Materials: Polycarbonate Lens, Aluminum Heatsink, Powdercoated Steel
Cooling: Passive, heatsink

What's Included

In the Box:
Brackets Only:
  • Full bracket set
  • Eight (8) 8-32" Stainless Steel Hex Nuts
  • Four (4) 8-32" Stainless Steel Hex Screws
  • Eight (8) Dzus 1500 Series Spacers
  • Eight (8) M6 Custom-Designed Bumper Feet
  • Twenty-four (24) M6 Stainless Steel Flange Bolts
  • Twenty-four (24) M6 Stainless Steel Flange Nuts
  • Installation Guide
Full Light Bar Kit:
  • Full bracket set
  • Four (4) SS12 12" or SS18 18" Stage Series Light Bar
  • One (1) heavy-duty single-output relay harness
  • Two (2) DT splitters
  • Four (4) SS Wide Clear Lenses
  • Eight (8) 8-32" Stainless Steel Hex Nuts
  • Four (4) 8-32" Stainless Steel Hex Screws
  • Eight (8) Dzus 1500 Series Spacers
  • Eight (8) M6 Custom-Designed Bumper Feet
  • Twenty-four (24) M6 Stainless Steel Flange Bolts
  • Twenty-four (24) M6 Stainless Steel Flange Nuts
  • Installation Guide
Quantity: Full Set (Four total)
Warranty: 3 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Installation

Click HERE for more information on how to switch out the light bar lenses.

Installation Time: 1-2 hours

Tools Needed: Basic Toolset

Modification: Minor Modification

Installation Guide: Click to download

Warranty

3 Year Replacement Limited Warranty

All Diode Dynamics products come with a 3 Year Worry-Free Warranty.

If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.

Shipping

Domestic (U.S.) Shipping

All domestic (U.S.) orders ship with your choice of UPS or USPS, and all orders placed before 12 PM CST will ship the same day, if all items are in stock. Shipping costs are calculated at checkout, based on order size. Delivery usually takes just 3-5 days.

You will receive updates from our site when your order is shipped, along with a unique shipment number to ensure that your order is correctly accounted for. This allows you to easily reply to us if you have any concerns.

Have a question about your shipment? Just like any other question you might have, simply send us an email and our trained lighting and shipping experts will reply, usually the same day. Or, give us a call during normal business hours.



International Shipping

We ship to almost everywhere in the world using USPS shipping services, along with your country's postal service. Rates are calculated at checkout to ensure fair pricing. We normally offer standard mail, Priority International, and EMS Express. Please note that the shipping time can vary widely, based on your countries mail service and border policies.

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

Puerto Rico: As we use standard USPS, PR is considered a US territory for mailing purposes, and can be selected as such at checkout. Shipping will be domestic U.S. rates.

Canada: We ship to Canada every day! Most small orders will cost around $10 via standard mail. We also offer Priority and Express EMS. To see exact shipping rates, please view your options at checkout. We also offer UPS service to Canada.

Europe, Asia, and AustraliaWe ship to all other countries using standard mail. You can check the shipping cost at checkout, as it will be calculated based on your cart. We offer standard mail, Priority, and EMS Express.



Customs Fees for International Shipping

Shipments are marked with the value of your purchase price. International customers are responsible for any tariffs or customs fees that may be associated with their shipment. Please check your country's laws and regulations before your purchase.

As we use only standard mail, our customers normally do not incur any type of import fees, customs fees, or tariffs for smaller shipments. However, this cannnot be guaranteed, and any fees are the responsibility of the buyer. Please contact us if you have any concerns.

The following part numbers are included with this listing:

SKU Price Name Driver Components
DD6076 $140 Motorsports Bracket Set HW0029 Screw M6 12mm Flange SS, HW0037 M6-1.00 Hex Flange Nut Serrated A2 , HR0014 Bumper M6, HW0039 Nut 8-32 Hex 18-8 SS, HW0026 Spacer for Dzus 1500 Series Slide , HW0025P2 Dzus 1500 Series Bushing, HW0040 Screw Hex 8-32x 2.5in Button SS 18-8 SS, HW0028 Rivet 1/8in x 0.275in Aluminum , HW0025P1 Dzus 1500 Series Slide Latch
DD6114 $720 Motorsports Stage Series Kit 12in DD4045 Offroad Harness Dual Heavy Duty, HW0029 Screw M6 12mm Flange SS, HW0037 M6-1.00 Hex Flange Nut Serrated A2 , HR0014 Bumper M6, HW0039 Nut 8-32 Hex 18-8 SS, HW0026 Spacer for Dzus 1500 Series Slide , HW0025P2 Dzus 1500 Series Bushing, HW0040 Screw Hex 8-32x 2.5in Button SS 18-8 SS, HW0028 Rivet 1/8in x 0.275in Aluminum , HW0025P1 Dzus 1500 Series Slide Latch, WE0028 DT Splitter, DD6024 Outer Lens for SS Wide Clear
DD6115 $960 Motorsports Stage Series Kit 18in DD4045 Offroad Harness Dual Heavy Duty, HW0029 Screw M6 12mm Flange SS, HW0037 M6-1.00 Hex Flange Nut Serrated A2 , HR0014 Bumper M6, HW0039 Nut 8-32 Hex 18-8 SS, HW0026 Spacer for Dzus 1500 Series Slide , HW0025P2 Dzus 1500 Series Bushing, HW0040 Screw Hex 8-32x 2.5in Button SS 18-8 SS, HW0028 Rivet 1/8in x 0.275in Aluminum , HW0025P1 Dzus 1500 Series Slide Latch, WE0028 DT Splitter, DD6024 Outer Lens for SS Wide Clear
