Upgrade your 2010–2024 Toyota 4Runner with the Stage Series Backlit Ditch Light Kit from Diode Dynamics. CAD-designed to utilize factory mounting points, this kit provides a clean, secure mounting solution for powerful LED pods to enhance forward and peripheral visibility.
This guide walks you through bracket installation and final pod mounting to ensure a professional, scratch-free install.
Table of Contents
- Installation Tools
- Installation Instructions
- Questions About the Installation?
- Where Can I Buy the Stage Series Backlit Ditch Light Kit?
Installation Tools
- 12mm socket and ratchet
- Painter’s tape or masking tape
- Assistant (recommended for hood support)
Time Required: Approximately 30–60 minutes.
Installation Instructions
Step 1 – Mark Hood Hinges and Protect Paint

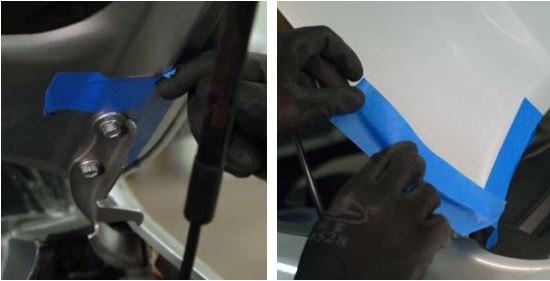

Starting on the driver side, mark the location of the hood hinges with tape. Tape the edges of the hood to prevent scratching during installation.
Step 2 – Remove Hood Hinge Bolts

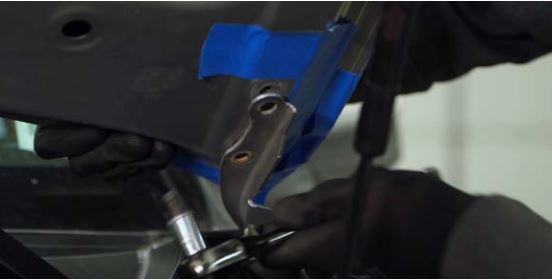

Remove the two 12mm bolts securing the hood hinge while supporting the rear of the hood. We highly recommend having someone hold the front of the hood to ensure it does not close when the bolts are removed.
Step 3 – Position the Ditch Light Bracket

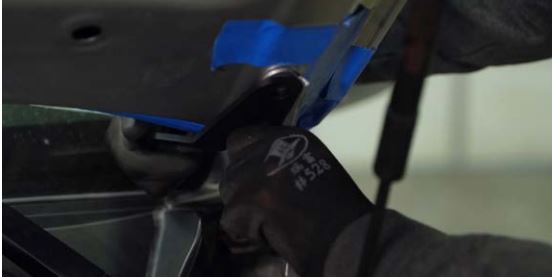

Place the ditch light bracket under the hood hinge and align the mounting holes. Adjust the bracket to leave a slight gap at the back of the hood before tightening.
Step 4 – Secure the Bracket

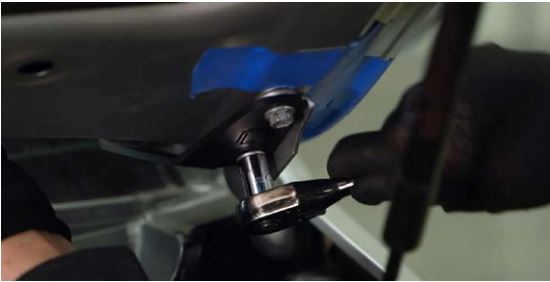

Reinstall the factory bolts to secure the bracket and hood hinge. Ensure the hinge lines up with the tape marks before fully tightening.
Step 5 – Repeat on Passenger Side

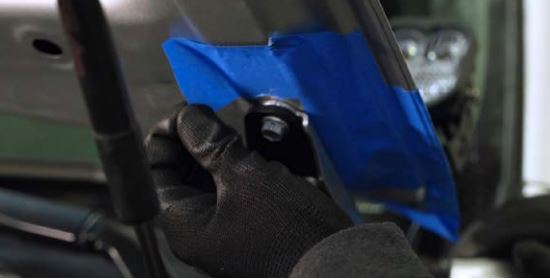

Remove the protective tape and repeat the steps on the passenger side to complete bracket installation. On the passenger side, remove the washer fluid line before removing the hood hinge bolts. Reinstall the washer fluid line after bracket installation is complete.
Step 6 – Mount the LED Pods and Route Wiring

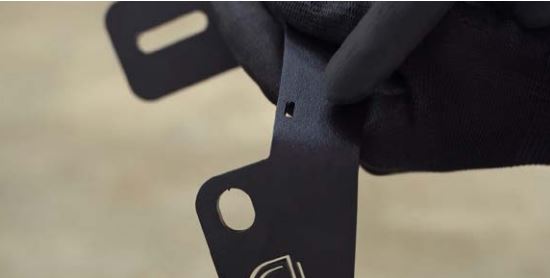

Once the brackets are mounted, refer to the Universal Bracket Info/Mounting Guide to mount your SSC2 or SS3 pods to the brackets. Each bracket includes a small cutout to assist with wire routing. Use the included zip ties to secure the wiring away from the hood hinge.
Questions About the Installation?
If you have any questions about installing the Stage Series Backlit Ditch Light Kit for 2010–2024 Toyota 4Runner, contact us via our support page.
Where Can I Buy the Stage Series Backlit Ditch Light Kit for 2010–2024 Toyota 4Runner?
If you're ready to upgrade your 2010–2024 Toyota 4Runner with the Stage Series Backlit Ditch Light Kit, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD6750, DD6751, DD6752, DD6753, DD6746, DD6747, DD6748, DD6749, DD6745P
