The SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia allows you to mount a pair of Stage Series 6" LED light bars as high-output fog lights. This installation guide will provide you with detailed instructions on how to remove the factory fog lights and install the SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia. Watch our installation video or continue reading below for detailed instructions!
Table of Contents
- Installation Tools
- Installation Video
- Mounting Instructions
- Aiming Instructions
- Questions About the Installation?
- Where Can I Buy the SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia?
Installation Tools
- 10mm socket
- Ratchet and extensions
- Phillips screwdriver
- Phillips screwdriver bit
- Plastic trim removal tool
- Needle-nose pliers
Installation Video
Mounting Instructions
Hardware Notice: Your kit may include billet mounting adapters, or it may include revised outer mounting brackets that attach directly to the light bars. Both configurations install using this guide and provide identical fitment and performance.
Step 1 - Loosen the Grille
Using a 10mm socket, remove the four bolts from the top of the grille.
Step 2 - Disconnect the Grille Connectors
If equipped, disconnect the electrical connectors located at both corners of the grille.
Step 3 - Remove the Wheel Well Screws
Using a 10mm socket, remove the four screws from inside the wheel well. If the vehicle is equipped with over-fender molding, remove the additional screw from the lower inside edge of the wheel well opening. Repeat this step on the opposite side.
Step 4 - Remove the Lower Bumper Fasteners
Remove the four 10mm bolts from underneath the bumper. If the vehicle is not equipped with a front spoiler, remove the four additional screws underneath the bumper.
Step 5 - Remove the Grille and Bumper Assembly
Pull outward on both sides of the grille to release the retaining clips. Then pull the grille and bumper assembly forward and remove it from the vehicle.
Step 6 - Remove the Bumper Panel Screws
Using a Phillips screwdriver, remove the six screws securing each corner bumper panel. Then remove the two screws located along the top of the grille.
Step 7 - Release the Upper Grille Surround
Using a plastic trim removal tool, release the ten retaining tabs securing the upper grille surround.
Step 8 - Remove the Corner Bumper Panels
Release the seven retaining tabs securing each corner bumper panel, then remove the panels from the assembly.
Step 9 - Remove the Front Bumper Molding
Using a plastic trim removal tool, release the retaining clips and pull outward to remove the front bumper molding.
Step 10 - Remove the Factory Fog Lights
Using a Phillips screwdriver, remove the two screws securing the factory fog light to the bumper. Remove the fog light and disconnect the factory connector. Repeat this step on the opposite side.
Step 11 - Assemble the Fog Light Brackets
Install the four included fog light brackets onto the sides of the Stage Series 6" light bars using the supplied hardware.
Some kits include billet mounting adapters, while newer kits use revised outer mounting brackets that eliminate the need for the adapters. Both versions install using this guide and provide identical fitment.

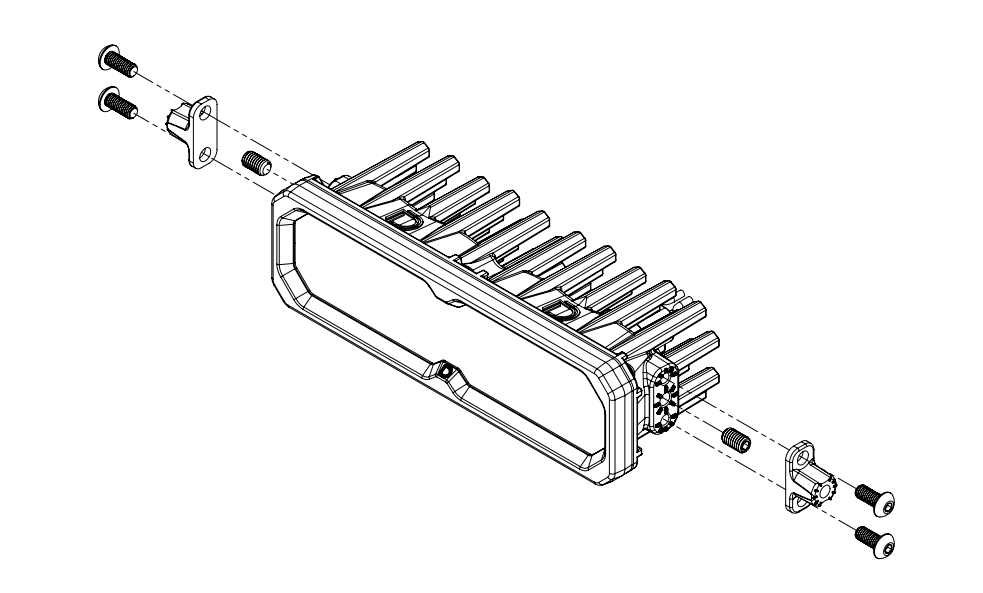

If your kit includes billet mounting adapters, install the included set screws in the center mounting position on both sides of each light bar. Attach each adapter to the light bar using the supplied Torx screws in the upper and lower mounting holes. Once the adapters are secured, attach the outer mounting brackets using the supplied hex bolts.
If your kit does not include billet mounting adapters, attach the revised outer mounting brackets directly to the light bars using the supplied hardware.
Note: If your kit does not include billet mounting adapters, the revised outer mounting brackets attach directly to the light bars using the supplied hardware. Both versions provide identical fitment and performance.
Step 12 - Install the LED Light Bars
Position each assembled light bar and mounting bracket into the factory fog light location. Secure the assembly using the factory screws removed earlier. Repeat this step on the opposite side.
Step 13 - Connect the Vehicle Harness
Use the included adapter wire to connect each light bar to the corresponding factory fog light connector.
Connect the Backlight Wire (Optional)
Stage Series Light Bars equipped with the backlight function feature an integrated amber backlight that illuminates the TIR optic for a distinctive accent appearance.
Connect the blue wire with the red male spade connector to a fused 12V source. The parking light or sidemarker circuit is commonly used so the backlight activates with the vehicle's exterior lighting.
Use the included T-taps to make the connection:
- Position the T-tap over the selected wire.
- Use needle-nose pliers to fully seat and crimp the T-tap.
- Insert the red male spade connector into the T-tap until secure.
Note: The selected power source must be fused. Do not connect the backlight wire directly to the vehicle battery.
Step 14 - Temporarily Reinstall the Grille and Bumper Assembly
Temporarily position the grille and bumper assembly back onto the vehicle so the lights can be tested and aimed before final reassembly. Snap each end into the fender clips, reinstall the four 10mm bolts along the top of the grille, and reconnect the grille connectors if equipped.
Step 15 - Test the Lights
Test the function of both light bars. If either light does not illuminate, disconnect the adapter from the factory harness, rotate the connector 180 degrees, and reconnect it. Complete the aiming procedure below, then tighten the light bar mounting bolts.
Step 16 - Reassemble the Vehicle
Remove the grille and bumper assembly again by reversing Step 14. Then reinstall the bumper components and grille assembly by reversing Steps 1 through 9.
Aiming Instructions
Step 17 - Position the Vehicle for Aiming
Park the vehicle on a level surface 25 feet away from a wall or garage door.
Step 18 - Loosen the Light Bar Bolts
Loosen the M6 bolts on both sides of each SS6 light bar just enough to allow the light bar to pivot.
Step 19 - Measure the Mounting Height
Measure the distance from the ground to the center of the SS6 light bar. This measurement is the mounting height.
Step 20 - Mark the Mounting Height on the Wall
Use tape to mark the measured mounting height on the wall or garage door.
Step 21 - Mark the Fog Light Cutoff Line
Place a second horizontal piece of tape four inches below the mounting-height mark. This lower mark is the fog light cutoff line.
Step 22 - Aim the SS6 LED Light Bars
Adjust each SS6 light bar until the top of the beam pattern aligns with the cutoff-line mark.
Step 23 - Complete the Installation
Tighten the M6 bolts on both sides of each light bar. Do not overtighten the bolts or use power tools.
The installation is now complete. Enjoy your new SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia!
Questions About the Installation?
If you have any questions about installing the SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia, contact us via our support page.
Where Can I Buy the SS6 LED Fog Light Kit for the 2022-2026 Toyota Tundra and 2023-2026 Toyota Sequoia?
If you're ready to upgrade your 2022-2026 Toyota Tundra or 2023-2026 Toyota Sequoia with the SS6 LED Fog Light Kit, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKUs: DD7418, DD7419, DD8702, DD8581, DD8583, DD8703, DD8582, DD8584
