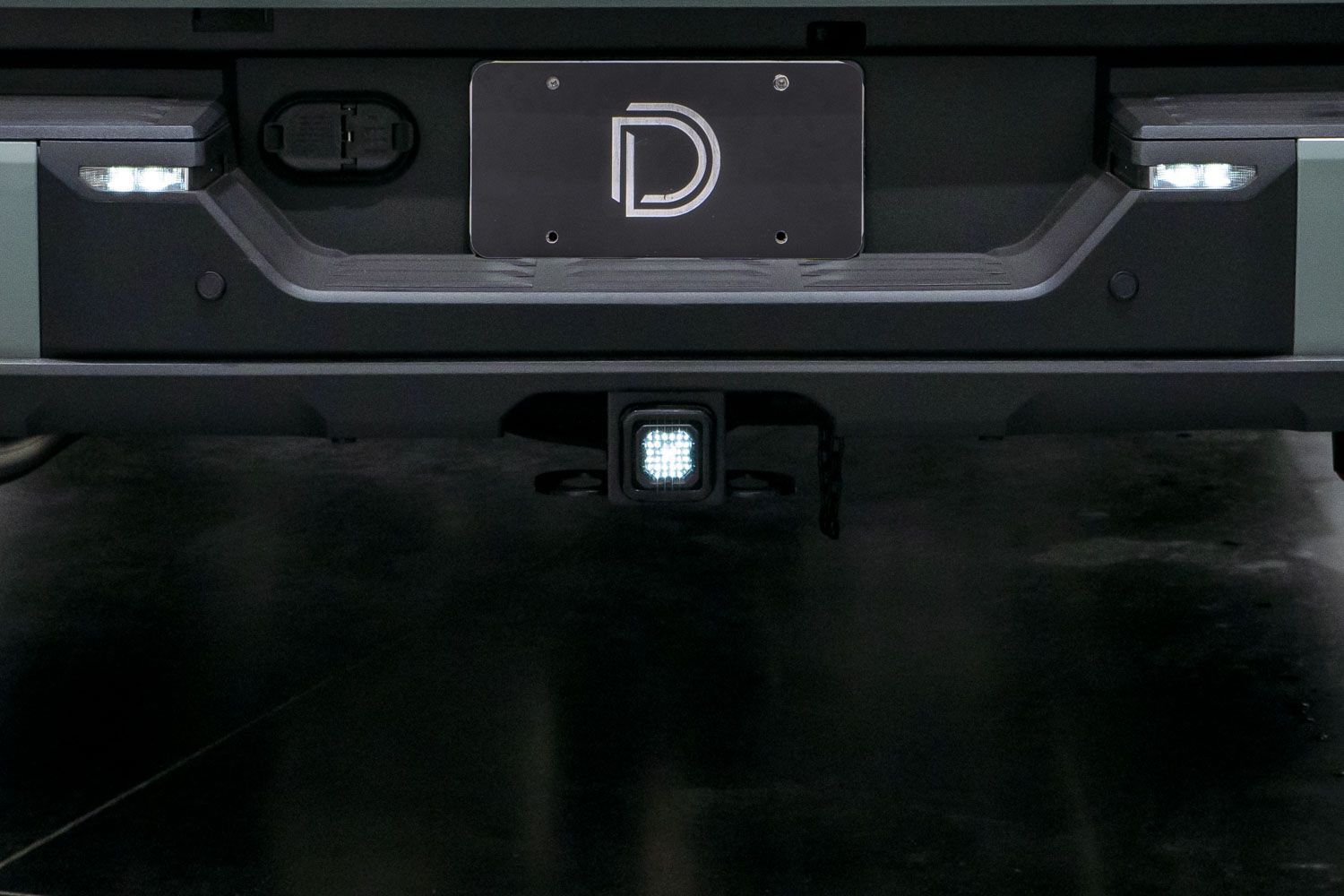

The 4-Pin HitchMount LED Pod Reverse Kit allows you to install one SSC1 or C1R LED Pod in your 2-inch or 2.5-inch trailer hitch receiver, adding a high-power reverse light, additional running light, and optional 4th brake light with our new 4-Pin Trailer Harness.
The following installation guide will provide you with instructions on how to install the HitchMount LED Pod Reverse Kit on your vehicle. Check out our installation video, or continue reading for step-by-step instructions!
NOTE: All HitchMount LED Pod kits now include a custom-molded adapter sleeve for use with 2.5-inch receivers. This component is not required for vehicles equipped with a standard 2-inch hitch receiver, and can be set aside during installation.
Table of Contents
Installation Tools
- Basic hand tools
- T-tap connector (included)
Estimated installation time: 10 minutes.
Installation Video
Installation Instructions
Step 1 — Connect the Trailer Harness
Locate the vehicle’s factory 4-pin trailer connector and plug in the 4-pin HitchMount harness until it is fully seated and secure.
Step 2 — Route the Harness and Mount the LED Pod
Route the harness around the rear bumper as needed. Feed the 4-pin DT connector through the back of the hitch opening to the front, connect it to the female DT connector on the back of the HitchMount pod, and snap the pod securely into the hitch receiver.
Step 3 — Tap into the Reverse Light Wire
Route the 4-foot extension wire to the back of the taillight. Connect the extension wire to the vehicle’s reverse light wire using the included T-tap. This allows the HitchMount LED pod to activate automatically when the vehicle is placed in reverse.
Step 4 — Configure the SafetyStrobe (Optional)
If equipped with a SafetyStrobe feature, locate the purple wire loop on the inline driver. Cutting this loop will disable the strobe function. Note that because the harness does not have constant power, the strobe timer only counts down when the parking lights are on.
Using a Hitch Pin (Optional)
The HitchMount stays secure using its integrated clip, but if you’d like to add a locking hitch pin (not included), you can follow the steps below. This optional modification does not affect warranty coverage.
Step 1 — Cut the Retention Tabs
Using a suitable cutting tool, carefully remove the circular sections from each side tab on the HitchMount sleeve. This will create a clear path for the hitch pin to pass through.
Step 2 — Insert the HitchMount Pod
Connect the HitchMount pod to the harness and push it fully into the hitch receiver until it is properly seated.
Step 3 — Insert and Secure the Hitch Pin
Slide the hitch pin through the receiver and HitchMount sleeve, then lock it in place. Ensure the pin fits snugly to prevent movement or rattling during use.
The installation is now complete. Enjoy your new 4-Pin HitchMount LED Pod Reverse Kit!
Questions About the Installation?
If you have any questions about installing the 4-Pin HitchMount LED Pod Reverse Kit, contact us via our support page.
Where Can I Buy the 4-Pin HitchMount LED Pod Reverse Kit?
If you're ready to upgrade your vehicle with the 4-Pin HitchMount LED Pod Reverse Kit, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKU: DD8765, DD8762, DD4215, DD4213
