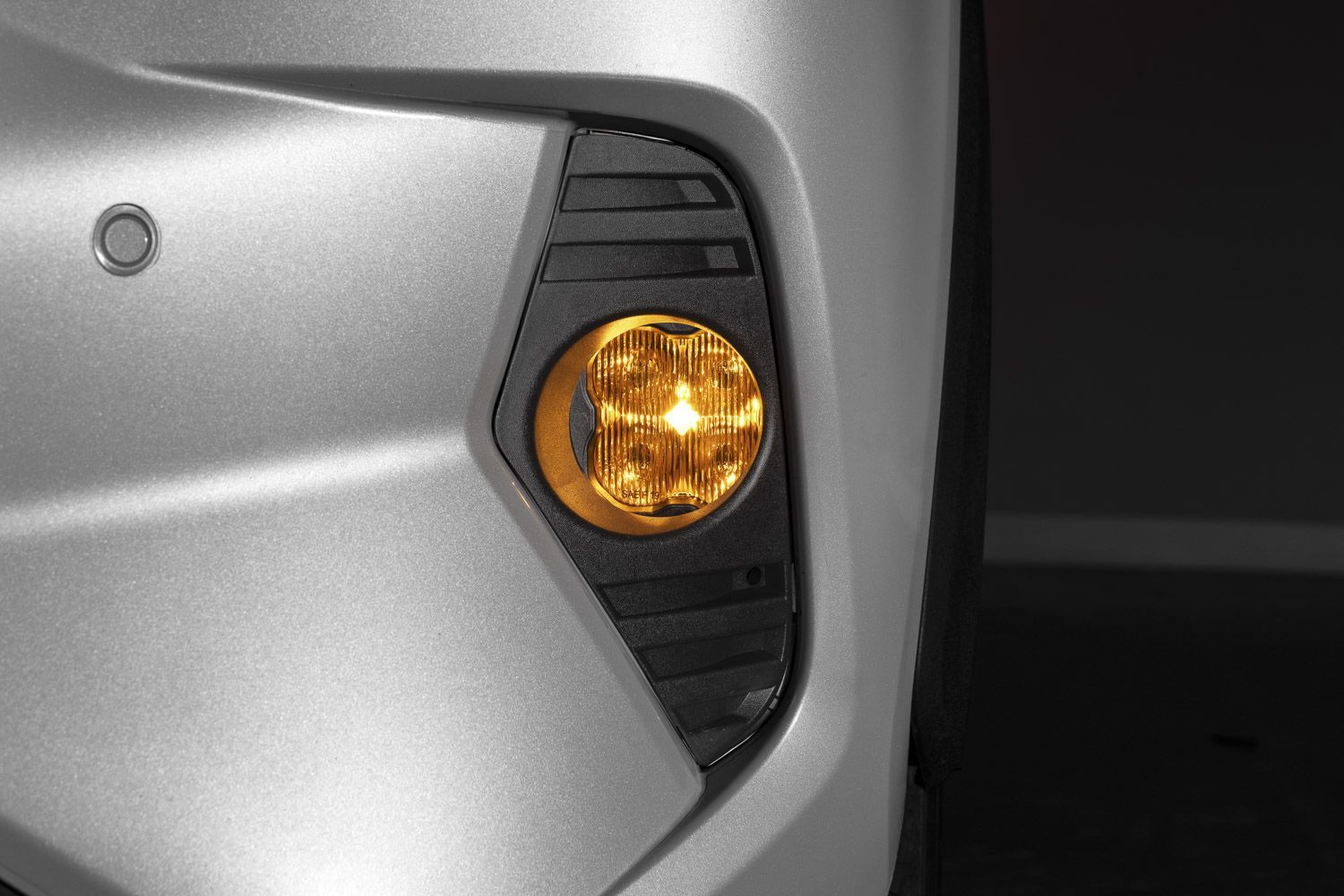

The 2019–2025 Toyota RAV4 Fog Light Kit adds powerful auxiliary fog lighting for improved visibility in poor weather and low-light driving conditions. This installation guide will provide you with detailed instructions on how to install the 2019–2025 Toyota RAV4 Fog Light Kit. Continue reading for step-by-step instructions below!
Table of Contents
- Installation Video
- Installation Tools
- Installation Instructions
- Questions About the Installation?
- Where Can I Buy the 2019–2025 Toyota RAV4 Fog Light Kit?
Installation Tools
- 10mm socket
- Plastic trim removal tool
Installation Video
Installation Instructions

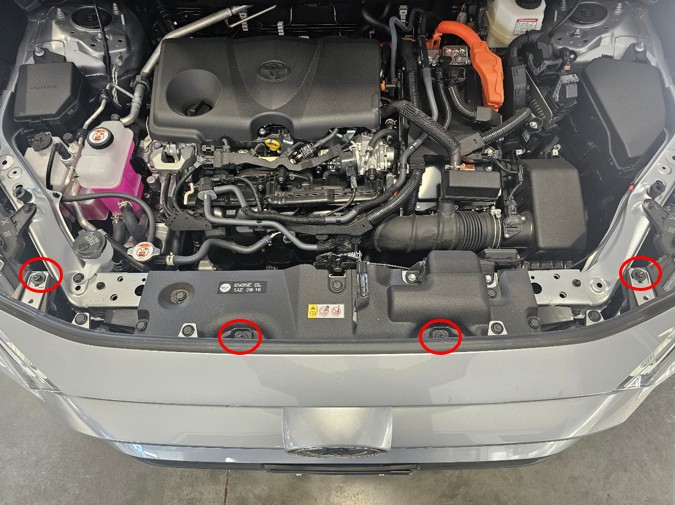

Step 1 — Remove upper bumper fasteners
Open the hood and use a 10mm socket to remove the fasteners securing the top edge of the front bumper cover.

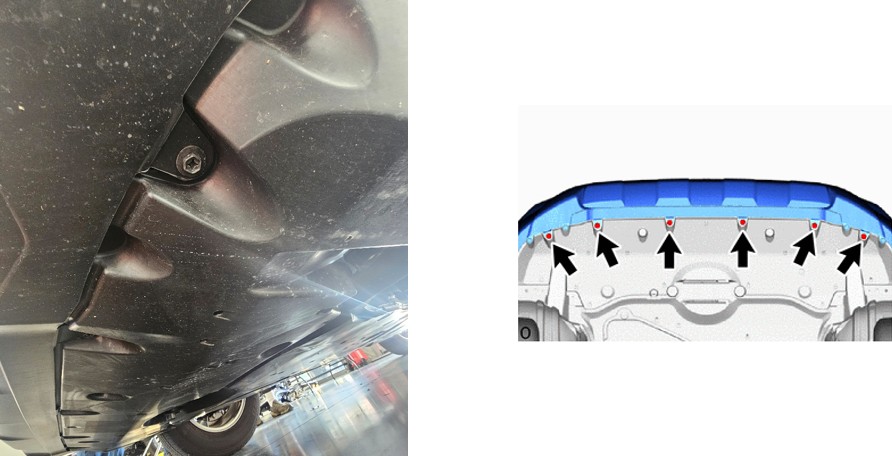

Step 2 — Remove lower bumper fasteners
From underneath the vehicle, remove the fasteners securing the lower edge of the bumper cover.

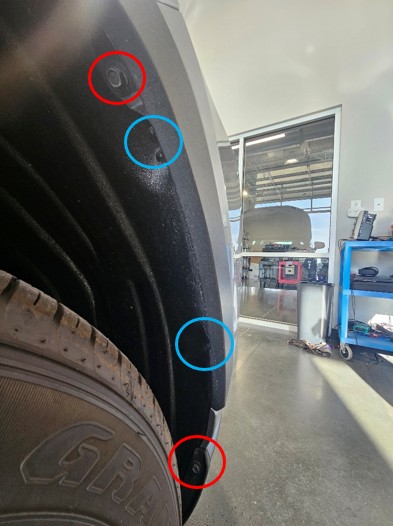

Step 3 — Remove wheel liner fasteners
Remove the fasteners and clips securing the front wheel liners. Repeat this process on both sides of the vehicle.

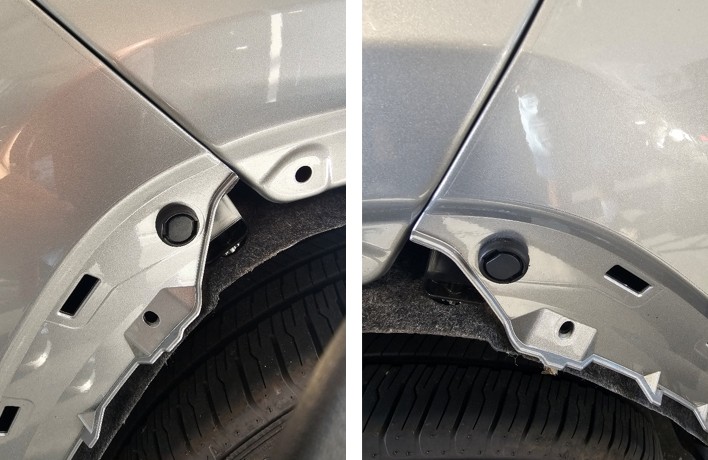

Step 4 — Release bumper from fender flares
Carefully pull outward on the bumper cover to release it from the fender flares. Remove the retaining clip on each side.

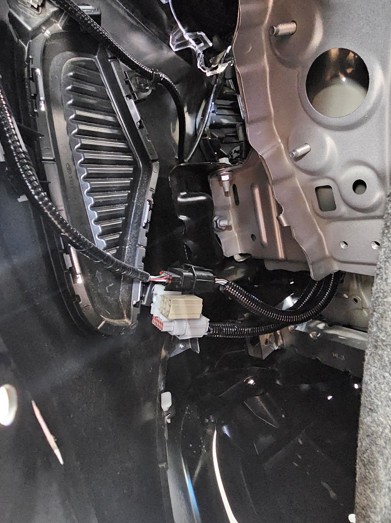

Step 5 — Disconnect bumper electrical connectors
Reach behind the driver-side wheel liner and disconnect any electrical connectors attached to the bumper cover, including the factory fog light harness.

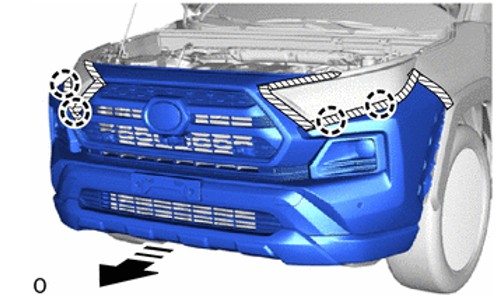

Step 6 — Remove front bumper cover
With all fasteners and connectors removed, pull the bumper cover straight forward and set it aside on a protected surface.

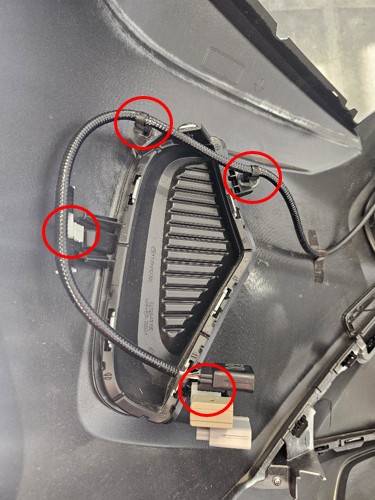

Step 7 — Remove fog bezel harness clips
Using a trim tool, release the wiring harness clips attached to the back of the factory fog light bezels.

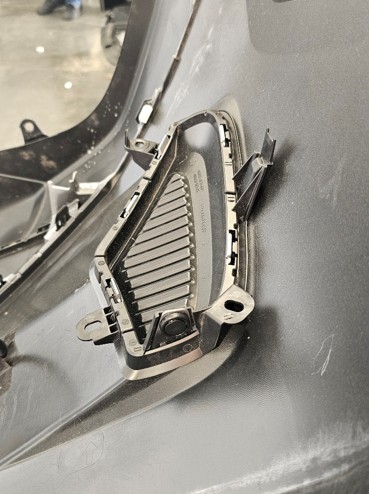

Step 8 — Remove factory fog light bezels
Release the retaining tabs and remove the factory fog light bezels from the bumper cover.

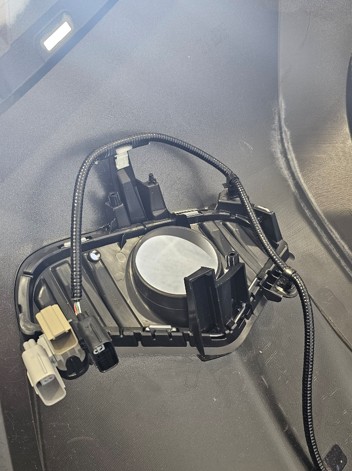

Step 9 — Install replacement fog light bezels
Install the provided fog light bezels into the bumper and secure them using the factory clips. Repeat on the opposite side.
Step 10 — Install fog light pods
Mount the fog light pods into the bezels using the included hardware, following the washer orientation shown in the guide. Plug in the Fog Light Adapter Harness (4P DT to DJ70 Adapter).
Tap the Backlight wire to the Sidemarker power wire as shown.

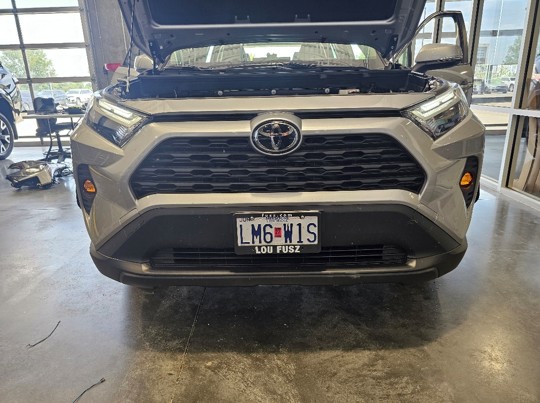

Step 11 — Reinstall bumper and test operation
Reinstall the front bumper cover, reconnect all electrical connectors, and test the fog lights for proper operation.

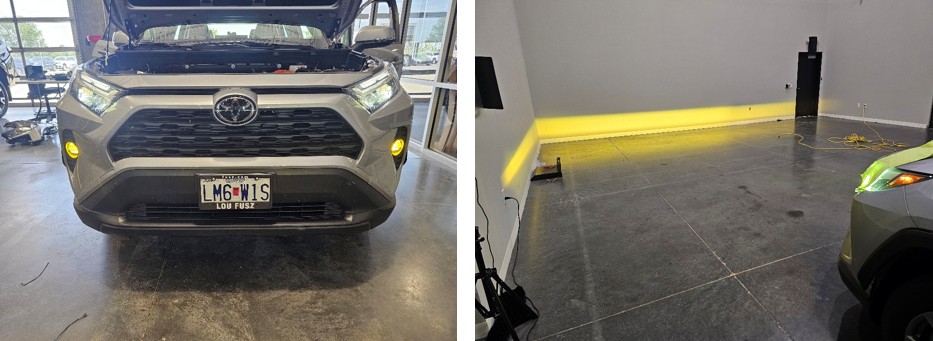

Step 12 — Aim fog lights and secure all fasteners
Aim the fog lights as needed, then reinstall all remaining fasteners and clips in the reverse order of removal.
The installation is now complete. Enjoy your new 2019–2025 Toyota RAV4 Fog Light Kit!
Questions About the Installation?
If you have any questions about installing the 2019–2025 Toyota RAV4 Fog Light Kit, contact us via our support page.
Where Can I Buy the 2019–2025 Toyota RAV4 Fog Light Kit?
If you're ready to upgrade your 2019–2025 Toyota RAV4 with the Fog Light Kit, visit DiodeDynamics.com or use our Dealer Locator to find a dealer near you.
Want to know more about Diode Dynamics products? Visit DiodeDynamics.com and subscribe to our newsletter for new product releases and more!
This Installation Guide is for the following SKU: DD8819, DD8820, DD8821, DD8822, DD8823, DD8824
