SS3 LED Fog Light Kit for 2017-2020 Ford Raptor

Features

• Bolt-on fitment for the 2017+ Ford Raptor.
• Adds SAE-compliant fog lights, and powerful offroad lighting.
• Harnesses included for independent control of road-legal and offroad lighting.
• Backlight feature provides amber accent light.
• Highly durable powdercoated aluminum construction.
• Engineered and assembled in USA.

Overview

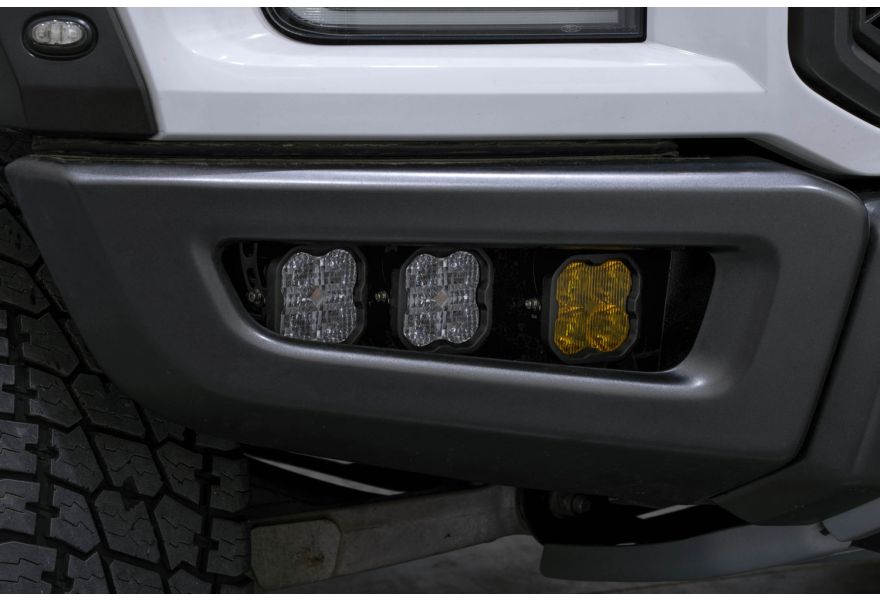

Overview. If you are looking to add some serious functionality to your Raptor, look no further! The SS3 Fog Light Kit for the 2017+ Ford Raptor from Diode Dynamics adds both road-legal fog lights and powerful offroad lighting. The CAD-designed brackets allow you to mount six SS3 LED Pods factory bumper openings. With the included harnesses, you'll be able to switch between road-legal fog lights and offroad lights with ease using your factory aux switch bank.

Lighting for Every Situation. This kit includes six total SS3 LED Pods: two SAE Fog, and four Combo/Driving. This combination provides ideal light output whether you are on or offroad!

SAE Fog provides an extremely wide field of view, with high-intensity output over an entire 80-degree spread. It will fully illuminate the area in front of your truck.

Combo/Driving provides a balanced beam pattern with strong forward illumination and a wide field of view. It shines in a smooth 80x30 degree spread, making it an excellent all-around option for a variety of speeds and terrain. Unlike other combo lights on the market that produce a distracting hotspot on rough terrain, the Combo/Driving optic produces a smooth, evenly blended pattern for a more comfortable driving experience.

When installed as a pair and aimed in accordance with your state's regulations, the Fog pattern meets SAE J583 standard as a Foglamp, for legal on-road use. Please check your local laws and regulations for aiming, installation, and applicability.

Backlight Functionality. Each pod in this kit includes a distinctive Amber backlight feature that can be controlled separately using the factory aux switches. The backlight on each pod included with the kit fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products.

White, Yellow, or Dual-Color. Choose 6000K cool white, 3000K selective yellow, or the Dual-Color option. White provides a crisp, modern appearance, while selective yellow improves contrast in rain, snow, fog, and dust. The Dual-Color option combines both colors in one lamp and lets you select the output that best fits the conditions.

SmartSelect Dual-Color Control. The Dual-Color option lets you switch the main beam between 6000K cool white and 3000K selective yellow using the factory fog light switch, with no extra switch required. To enter programming mode, cycle the fog lights On and Off three times, leaving each state active for at least half a second and no more than five seconds. The lamps will cycle through the available colors twice. Leave the lamps on for at least five seconds when your preferred color is displayed to save it. If no selection is made after two full cycles, the lamps return to white as the factory setting.

Consistent Fog Pattern. On the Dual-Color option, both white and yellow use the same focused SAE fog pattern, so changing color does not change the beam shape or aiming.

Six-Pod Kit Color Configuration. Dual-Color control applies to the two SAE Fog pods in this kit. The four off-road pods remain 6000K cool white.

Multiple Power Levels. The SAE Fog pods in this kit are available in Sport, Dual-Color, Pro, and Max. Sport provides dependable performance and is a great entry-level upgrade. Dual-Color delivers output between Sport and Pro, with selectable white and yellow SAE fog output in a single lamp. Pro steps up the intensity, while Max provides the highest SAE Fog output available. The four off-road pods remain 6000K cool white and are selected separately based on the kit configuration.

Separate Switches. With the included harnesses, the two SS3 Fog pods and four SS3 offroad pods in this kit can be controlled independently, allowing you to switch between road-legal fog lights and offroad lights with ease. This kit was designed to allow the SS3 Fog pods to operate in the same way factory-installed fog lights do, automatically turning on when they are switched on and when your headlights are turned on. The off-road lights in this kit can be controlled either through factory aux switches or the included 3-way toggle switch.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
