Talon Sei X DD SS3 LED Pod Kit

Features

• Exclusive kit in partnership with Talon Sei

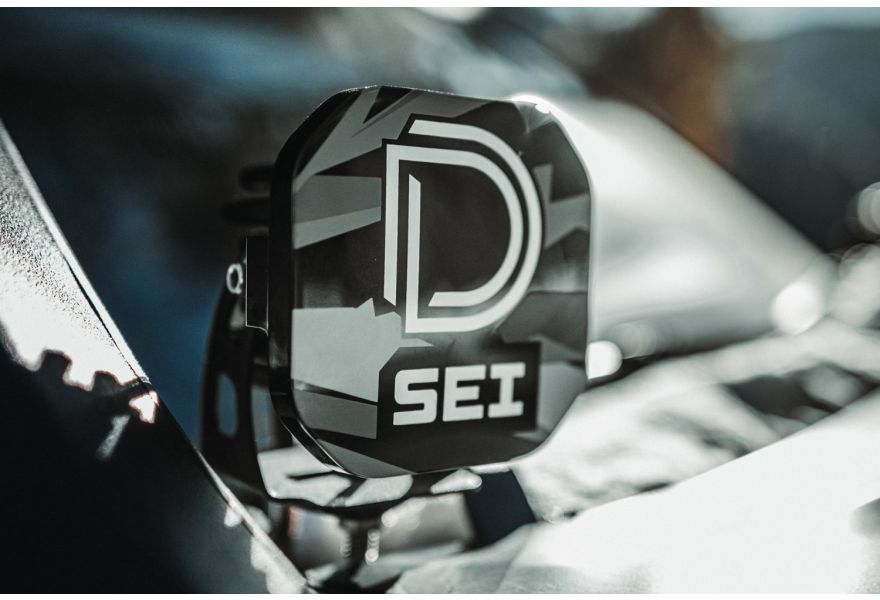

• Includes custom-designed Sei X DD snap-on covers
• Advanced TIR optics provide high efficiency and focus
• High-intensity automotive-type LEDs
• Pin-fin heatsink design, for superior thermal dissipation
• Durable powdercoated aluminum construction
• Engineered and Assembled in USA

Overview

Introducing the Talon Sei X DD SS3 LED Pod Kit! We have partnered with content creator and adventurer, Talon Sei to bring you this exclusive SS3 Kit! The kit includes a pair of Pro White Combo SS3 pods, along with custom-designed covers featuring Talon's unique camo design!

Focused. Traditional optics like reflectors or simple lenses lose light internally and to glare, so not all of the light shines on target. Instead, the custom-engineered TIR optic in the SS3 collects all of the light from the LED, and directs it only where you need it, drastically reducing glare and improving total efficiency. Click here to learn more: Total Internal Reflection (TIR) Optics | Stage Series Video.

From there, while other options on the market lose as much as 10% of the light output shining through an outer lens, the custom-molded TIR optic in the SS3 serves as both the optic and main lens for greater efficiency and light output (patent pending). Thanks to this innovative feature, when coupled with high-intensity LED chips, the total intensity of the SS3 is much greater than other LED pods using basic optics or reflectors with a standard outer lens.

Functional Patterns. Stage Series beam pattern options were designed with optical simulation modeling, to shape the output in a highly-functional beam pattern.

Combo pattern combines both the Driving and Flood optics. It shines light downrange in a focused, rectangular 65x25 degree pattern. The combo lens features a flood optic on one side and a driving optic on the other.

Cool White Output. The Stage Series LED pods included in this kit are a 6000K color temperature, which is a true cool white output, and matches most factory LED lighting. We also offer replacement lenses that allow you to change the color or optic of your SS3 Pods.

Backlight Functionality. The Stage Series 3" LED Pods in this kit come with a distinctive amber backlight. This integrated backlight gives you an additional accent light, along with the main beam. The SS3's backlight fully illuminates the TIR optic, providing a more unique and modern look than the small indicator LEDs found in other products. To power the backlight, use the included harness to tap your desired vehicle function.

Simple connections. All SS3 LED pods feature a custom-molded DT type Deutsch-style connector on the back, and come with a 6-inch pigtail with bare leads. For installation, you can wire yourself, use an off-the-shelf Deutsch DT sized wire harness, or select an optional Diode Dynamics wire harness. Our Light Duty Dual Output Harness can be used to power up to two SS3 pods. If you are looking to power more than two SS3 pods, we recommend using our Heavy Duty Dual Output Harness along with a Deutsch DT Splitter.

Proven Reliability. Stage Series LED lighting has been extensively tested for long-term operation from -40 to 185 degrees F, along with vibration, moisture intrusion, and corrosion testing. All of these tests are completed to SAE standards, just like factory components. They've also been put to the test on-road by racers and enthusiasts alike.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer our own products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!
