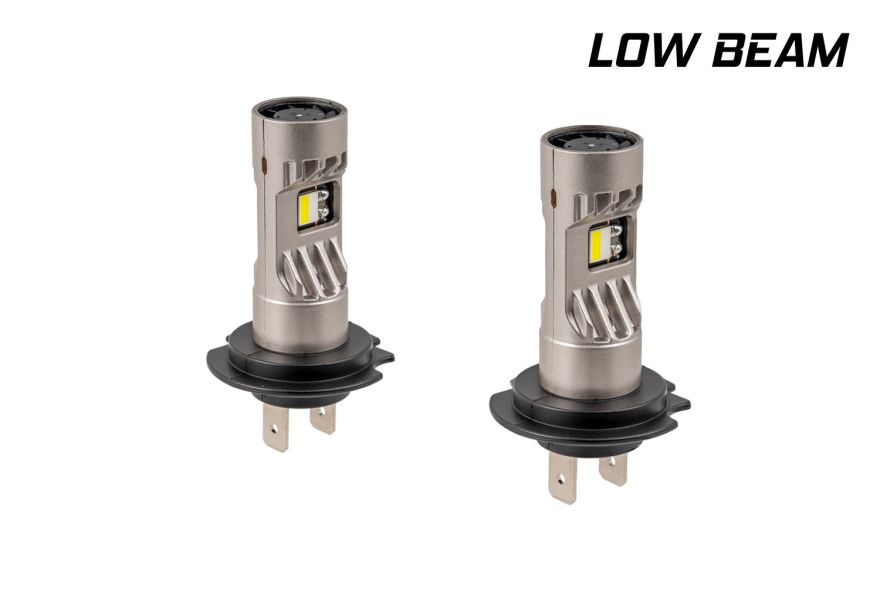

Low Beam LED Headlight Bulbs for 2009-2017 Audi Q5 (pair)

$139.95
24 units available for immediate shipment.

I understand that this product is not DOT compliant for use in headlamps on public roads in the United States. I agree to only use them in compliant applications. More info.

Features

  • Direct replacement for Audi Q5 Low Beam headlight bulbs with compact fitment.
  • Advanced LED Technology for industry-leading performance.
  • Internal cooling for superior reliability.
  • Compact fitment with integrated driver.
  • Backed by limited lifetime warranty.
  • Designed and engineered in USA (Patents Pending).

SL2 LED Headlight

Diode Dynamics has set the standard for LED bulbs with a history of solutions engineered to provide a true increase in performance. Thanks to improvements in technology, we are excited to redefine the standard once again. Introducing the SL2 LED headlight bulbs! The new SL2 LED bulbs have been carefully designed as a direct plug-and-play replacement for your Audi Q5 headlight bulbs, providing a significant increase in output, in a compact package.

Optimized Optical Focus. The headlight housings on your Audi Q5 are designed to focus light. If the light source in the housing is out of focus, it doesn't matter how bright the bulb is - you won't have a focused hotspot of light to shine down the road where you need it. Instead, you'll have more glare, which lights up the foreground and makes it harder to see in the distance. The SL2 LED bulbs were engineered to focus light just like your Q5's original bulb, matching the original beam pattern while still providing an increase in total output. These days, some LED bulbs on the market use the smallest LEDs possible to accomplish focus, but this leads to "over-focus", where you begin seeing streaks, lines, and harsh cutoffs in the beam pattern. Instead of using the smallest LEDs possible, the SL2 LEDs were optimized to provide a smooth and comfortable beam pattern, while still maintaining focus and increased output.

Fanless Design. You may have seen bulbs that use large straps for cooling, or big fans that just make noise. Instead, the SL2 was designed as a compact, fanless solution. But that doesn't mean it's low-power! At 14 watts, the bulb still provides plenty of output thanks to a copper-core circuit board and a thermally-optimized full-metal housing with integrated heatsink. The result is a highly-effective and reliable cooling system, keeping the bulb running at maximum potential without the need for a fan.

Compact Size. The SL2 LED bulb is compact in size, not much bigger than a traditional bulb. The integrated internal driver allows the bulbs to easily fit inside your housing without the need to tuck a driver away. Installation is easy - simply remove the original bulb, and the SL2 will fit in its place, and plug right in. And if your original bulb is installed at an angle, no worries - SL2 Pro has you covered with an adjustable collar that can be securely locked at the correct position.

Reliability. Every part of the SL2 LED was engineered for reliability, from its full metal construction to the fully-sealed design. The SL2 was put through it's paces in our environmental testing chambers - where the bulb lasted through repeated thermal cycles from -40 through 85 degrees Celsius (-40 to 185F), along with a range of other environmental tests. They're also designed with transient protection, to prevent premature failure from electrical spikes in the vehicle. They're even compatible up to 30V! We're so confident in the SL2 LED bulbs, that they're backed by an industry-leading limited LIFETIME warranty. See details at diodedynamics.com/warranty.

Experience. After over a decade in business, Diode Dynamics is one of the most trusted names in automotive LED lighting. We directly assemble and engineer an increasing number of products in the United States, allowing for higher quality and performance, with the newest and brightest LED technology. No matter what you're driving, we pride ourselves in offering only the best possible LED solutions. Please contact us if you'd like to discuss your lighting project!

Bulb Options

H7 SL2 - More details

  • Automotive-grade LEDs for superior performance.
  • Available in white or selective yellow.
  • Fanless design provides high reliability.
  • Compact fitment with integrated driver.

What's Included

Quantity: Two (2)
Warranty: Lifetime warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: These bulbs are a direct replacement for halogen headlight bulbs only and will not replace OEM HID bulbs.

Bulb Size: H7
Application: Low Beam
Make: Audi
Model: Q5
Years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

Specifications

Measured Lumens: SL2: 1400 (per bulb)
Power (watts): SL2: 14
Operating Voltage: 9-30V
Current (amps @ 12.8V): SL2 Pro: 1.6, SL2: 1.177
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
Connector(s): OEM-Size Plug and Play
Driver Features: Internal, Constant Current, Transient Protection
Compliance Ratings: SAE J575 Durability Test
Patent: Pending
Bulb Size: H7
Application: Low Beam
Make: Audi
Model: Q5
Years: 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017

What's Included

100% Satisfaction Guarantee

Installation

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Installation Guide: Click to download

Warranty

Limited Lifetime Warranty

Diode Dynamics carries a Lifetime Limited Warranty on select products.

If you experience any defect with a product, we will diagnose the issue with you, and if necessary, provide a replacement. Click here to learn more.
