2018-2026 Jeep JL Wrangler Rear Hardtop SS30 LED Light Bar Bracket Kit
Looking for something else for your JL Wrangler? Click here!
$49.95
9 units available for immediate shipment.
Features
- CAD-designed for perfect fitment on 2018+ Jeep JL Wrangler.

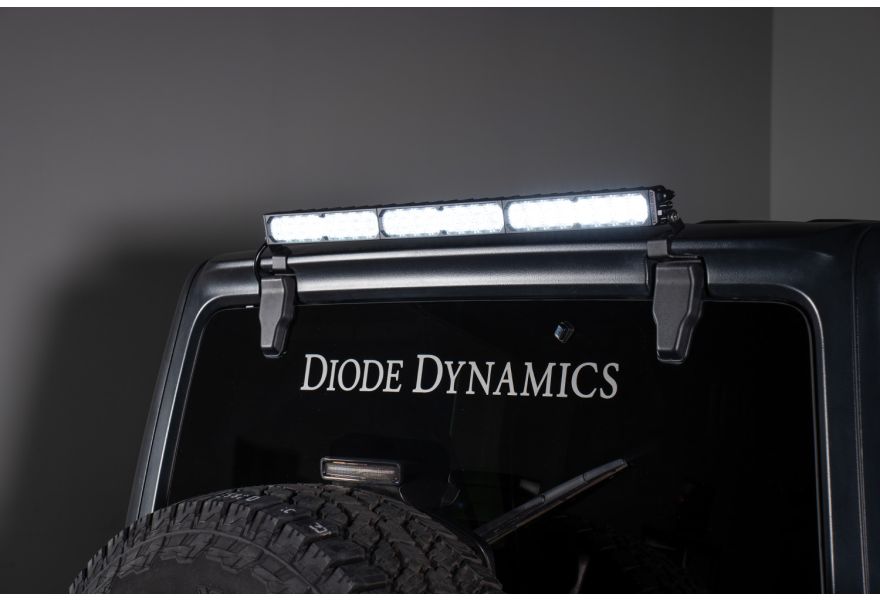

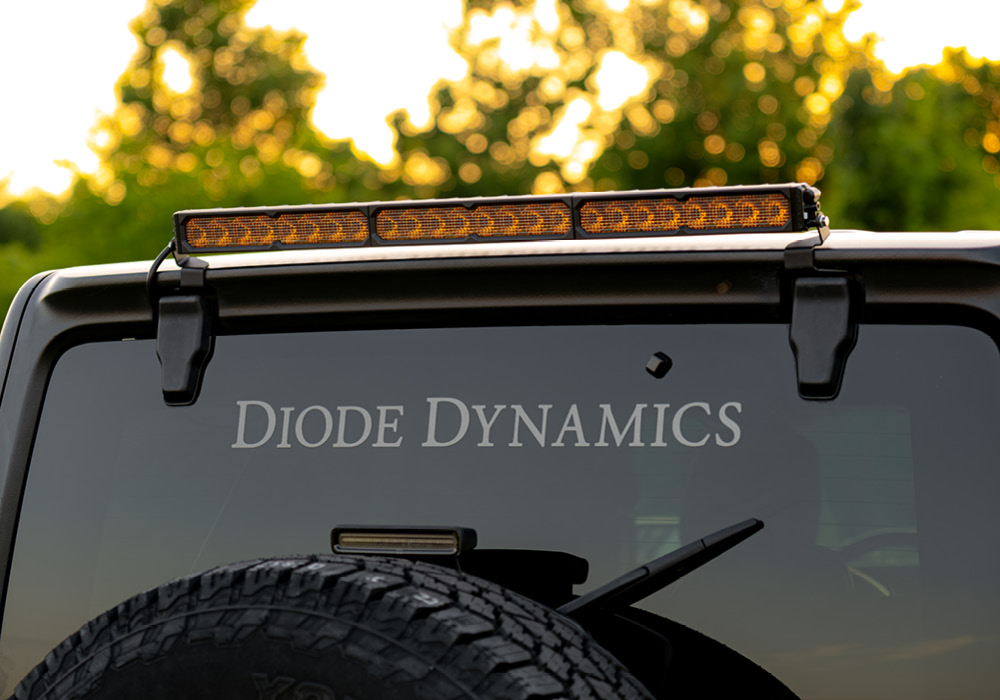

- Allows you to mount one 30" light bar across the rear window hinge.
- Low profile design allows rear window to remain fully functional.
- Designed to eliminate any excess wind noise.
- Utilizes existing mounting points for easy installation - no cutting or drilling required.
- Highly durable powdercoated steel construction.
Overview
Perfect fitment. The Rear Hardtop LED Light Bar Bracket Kit for the 2018+ Jeep Wrangler from Diode Dynamics allows you to easily mount a 30" light bar across the rear window hinge. These application-specific brackets were CAD-designed to install using factory mounting points. No cutting or drilling required! This kit is perfect as a backup or reverse light, or to light up the trails or a campsite. This lightbar is not designed to be connected to the factory backup wiring.
Low profile. These brackets were designed in-house specifically for our Stage Series light bar. The low profile design eliminates any excess wind noise, and allows the rear window to remain fully functional.

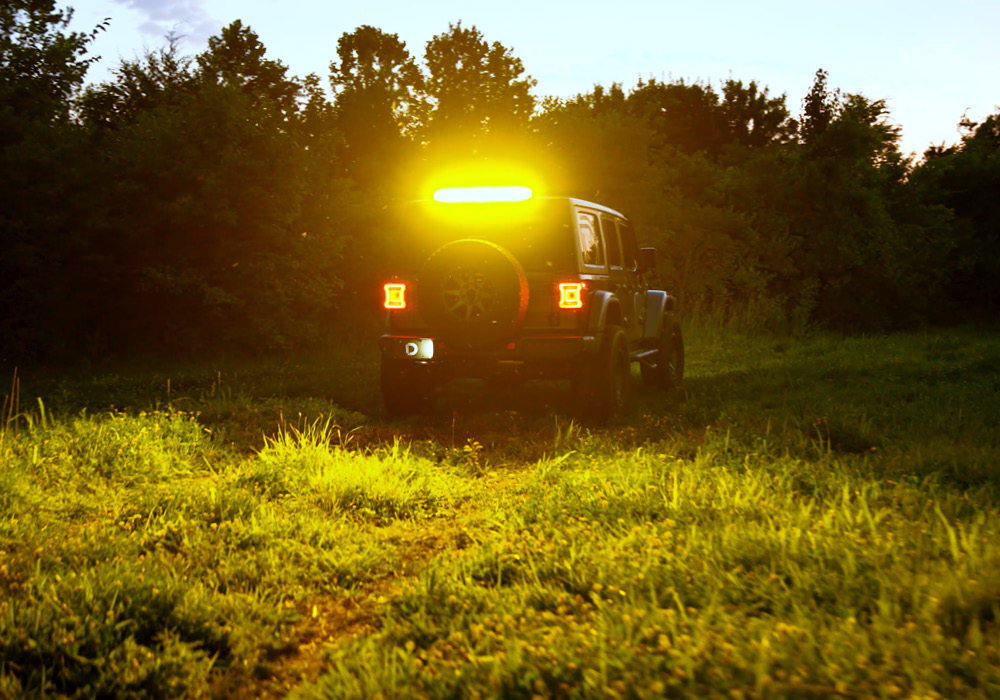

Designed for performance. Our Stage Series LED Light Bar optics were designed using optical simulation modeling, to shape the output in a highly-functional beam pattern. The Flood pattern was designed to provide uniform, even illumination and a full 80Wx50H degree spread of light. Unlike generic "flood" light optics that are simply a heavily diffused spot, our flood optic is a true optically designed spread, resulting in the biggest spread in the industry!
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
What's Included
In the Box:
- Two (2) Application-specific hardtop brackets
- One (1) SS30 Stage Series 30" Light Bar
- One (1) UHD Single-Output Wiring Harness
- One (1) UHD 3M Extension Harness
- Five (5) adhesive wire clips
- Ten (10) zip ties
Quantity: One (1)
Warranty: Lifetime warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee
Fitment
NOTE: This kit is compatible with OEM hardtops.
Make: Jeep
Model: JL Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
Specifications
| Optic/Power Level | Peak Beam Intensity (candela) |
Illuminance (lux @ 10m) |
Raw Output (lumens) |
Output Color |
|---|---|---|---|---|
| White Flood Sport | 7,350 cd | 73 lux | 11,064 lm | 6000K White |
| White Flood Pro | 13,300 cd | 133 lux | 37,632 lm | 6000K White |
| Yellow Flood Sport | 5,700 cd | 57 lux | 11,064 lm | 3000K Yellow |
| Yellow Flood Pro | 10,000 cd | 100 lux | 37,632 lm | 3000K Yellow |
Color Temp (CCT): 3000K, 6000K
Beam Angle: Flood, 100°x80°

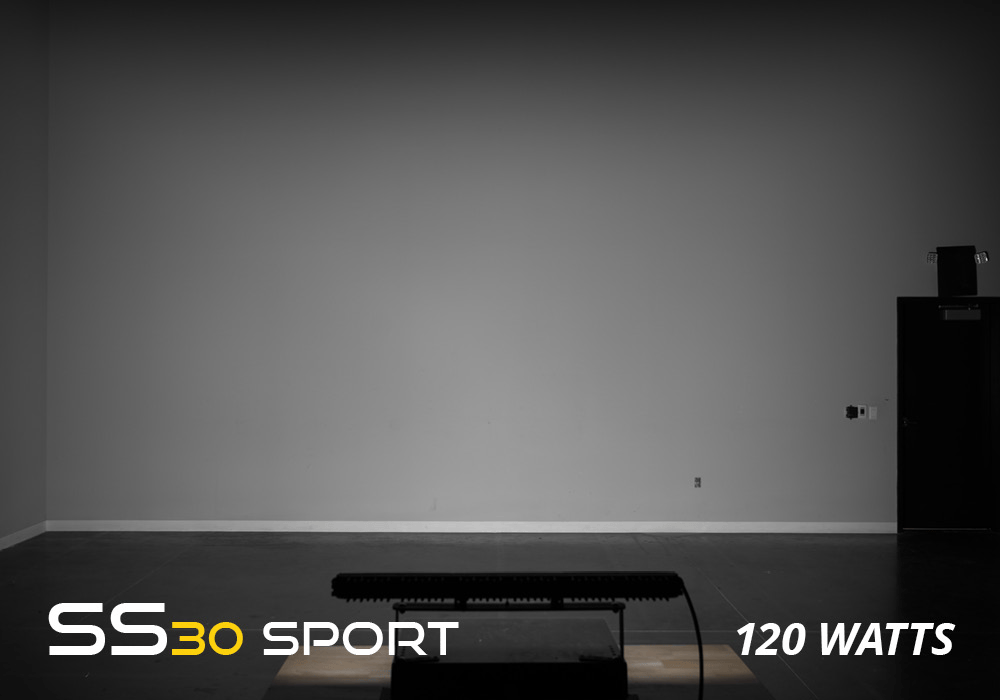

Power (watts): Sport: 120, Pro: 165
Operating Voltage: 9-30V
Current (amps @ 13.2V): Sport: 9.38, Pro: 12.90
Wire Size: 10AWG
Polarity: Polarity Specific
Operating Temperature: -40C to 85C (-40F to 185F)
LED Emitter: Osram Ostar Projection Compact, Lumileds Automotive Grade LED
Connector(s): DT 4-Pin
Materials: Aluminum PCB, Polycarbonate Lens, Aluminum Heatsink, Powdercoated Steel
Cooling: Passive, heatsink
Intrusion Ratings: IP69K Waterproof, High Pressure
Make: Jeep
Model: JL Wrangler
Years: 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025, 2026
What's Included
100% Satisfaction Guarantee
Installation
NOTE: This kit is not designed to connect to the factory backup wiring.
Installation Time: 30-60 minutes
Tools Needed: Basic Toolset
Modification: None
Installation Guide: Click to download
Warranty
Limited Lifetime Warranty
Diode Dynamics carries a Lifetime Limited Warranty on select products.
If you experience any defect with a product, we will diagnose the issue with you, and if necessary, provide a replacement. Click here to learn more.
