SS3 Type B Fog Light Mounting Kit

$99.95
10 units available for immediate shipment.

SS3 Fog Light Bracket Kit

  • Allows you to mount SS3 3" LED pods in certain fog light applications.
  • Includes custom-molded brackets and all necessary mounting hardware.
  • Highly durable construction.

Overview

Custom mount your 3" LED pod. This bracket kit is designed for use with our SS3 3" LED pods, allowing you to directly replace your factory fog light housing. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed! NOTE: This kit requires angled front bezels which are not included. If you need front bezels, click here.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we manufacture and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

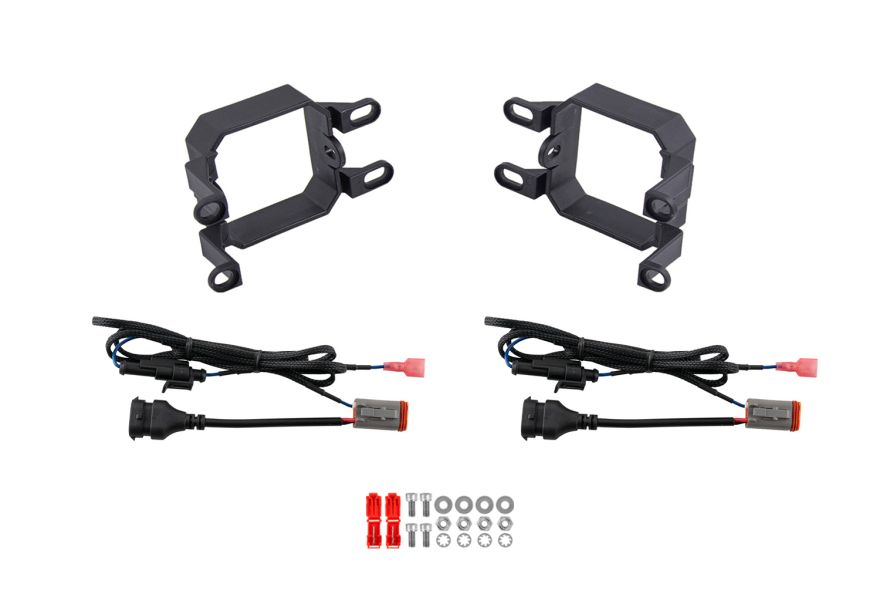

What's Included

In the Box:
  • Two (2) custom-molded Fog Light Brackets
  • Two (2) H11 2-Pin DT Adapters
  • Two (2) H11 4-Pin DT Adapters
  • Two (2) HW0054 Nut Nylon Lock 10-32 18-8 SS (McMaster: 91831A411)
  • Two (2) HW0055 Washer #10 18-8 SS (McMaster: 92141A011)
  • Two (2) HW0069 Screw 10-32x1/2 Socket Head 18-8 SS (McMaster: 92196A269)
Quantity: Pair (Left and Right Side)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

This mounting kit is a direct swap for many vehicles - see full list of known fitments below:

  • Lexus CT200H 2011-2017
  • Lexus GS350 2013
  • Lexus GS350 2014-2015
  • Lexus GS450H 2013
  • Lexus GS450H 2014-2015
  • Lexus IS250 2011-2013
  • Lexus IS350 2011-2013
  • Lexus RX450h 2015
  • Subaru Legacy 2015-2019
  • Toyota 4Runner 2010-2021
  • Toyota Avalon 2007-2015
  • Toyota Camry 2007-2014
  • Toyota Corolla 2009-2016
  • Toyota Highlander 2008-2010
  • Toyota Matrix 2009-2013
  • Toyota Prius 2010-2016
  • Toyota Prius C 2012-2016
  • Toyota Prius V 2012-2016
  • Toyota RAV4 2006-2012
  • Toyota Sienna 2010-2016
  • Toyota Solara 2007-2008
  • Toyota Tacoma 2012-2021
  • Toyota Tundra 2014-2021
  • Toyota Venza 2009-2014
  • Toyota Yaris 2007-2016

Specifications

Connector(s): OEM-Size Plug and Play, Deutsch DT Input
Shipped Weight (lb): 0.77

What's Included

100% Satisfaction Guarantee

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
