SS3 Fog Light Mounting Kit

2 Questions
$89.95
1078 In stock.
spec Specs Support Install

SS3 Fog Light Bracket Kit

  • Allows you to mount SS3 3" LED pods in certain fog light applications.
  • Includes custom-molded brackets and all necessary mounting hardware.
  • Highly durable construction.

Overview

Custom mount your 3" LED pod. This bracket kit is designed for use with our SS3 3" LED pods, allowing you to directly replace your factory fog light housing. Thanks to custom-molded brackets, the SS3 Fog Light Bracket Kit can be installed on your vehicle in minutes. Simply remove your factory fog light assembly and ours will bolt right in its place! Wire adapters are included to connect the lights to your factory bulb sockets - no additional wiring needed! NOTE: This kit does not include the front bezels.

Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!

What's Included

In the Box:

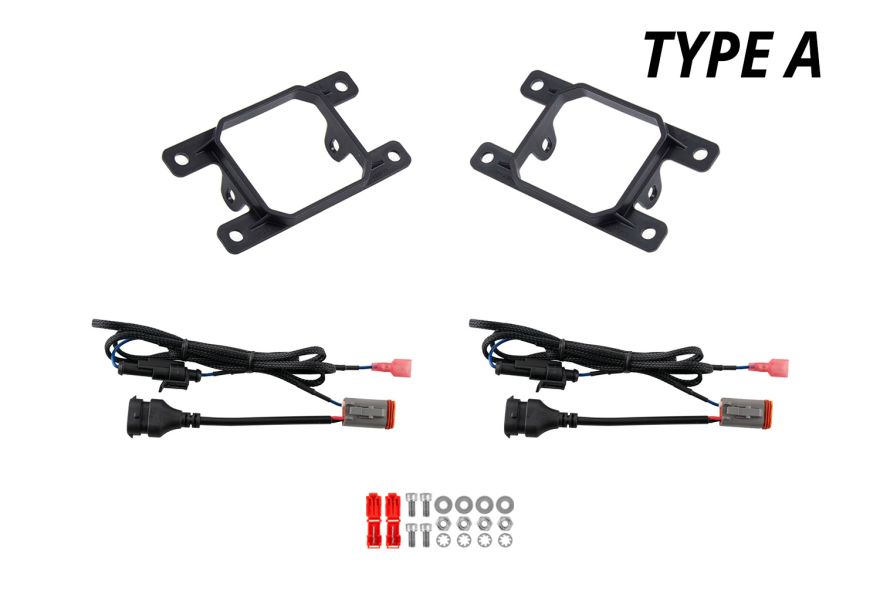

Type A:

  • Two (2) Type A Brackets
  • Two (2) H11 2-pin DT Adapters
  • One (1) H11 4-pin DT Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type B:

  • Two (2) Type B Brackets
  • Two (2) H11 2-pin DT Adapters
  • One (1) H11 4-pin DT Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type CGX:

  • Two (2) Type CGX Brackets
  • Two (2) H11 2-pin DT Adapters
  • One (1) H11 4-pin DT Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type CH:

  • Two (2) Type CH Brackets
  • Two (2) 5202 2-pin DT Adapters
  • Two (2) Backlight Tap Wire Kit
  • Two (2) PSX26W 2-pin DT Adapters
  • Four (4) T-taps
  • Four (4) Zip Ties
  • Mounting Hardware

Type F2:

  • Two (2) Type F2 Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type FT

  • Two (2) Type FT Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type GM:

  • Two (2) Type GM Brackets
  • Two (2) GMC Snap-On Covers
  • Two (2) Chevrolet Snap-On Covers
  • Two (2) 5202 DT 2-Pin Adapters
  • Two (2) 5202 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type GM5:

  • Two (2) Type GM5 Brackets
  • Two (2) 5202 DT 2-Pin Adapters
  • Two (2) 5202 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type M:

  • Two (2) Type M Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) Backlight Tap Wire Kit
  • Two (2) 5202 DT 2-Pin Adapters
  • Mounting Hardware
  • Mounting Guide

Type MR:

  • Brackets Only (Must be used in conjunction with Type M mounting kit)

Type MS:

  • Two (2) Type MS Brackets
  • Two (2) 5202 DT 2-Pin Adapters
  • Two (2) 5202 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type OB:

  • Two (2) Type OB Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) Backlight Tap Wire Kit
  • Two (2) H11 DT 2-Pin Adapters
  • Mounting Hardware
  • Mounting Guide

Type SD:

  • Two (2) Type SD Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type SDX:

  • Two (2) Type SDX Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type SV1:

  • Two (2) Type SV1 Brackets
  • Two (2) Molex DT 2-Pin Wire Adapters
  • Two (2) Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type SV2:

  • Two (2) Type SV2 Brackets
  • Two (2) H11 2-Pin DT Adapters
  • Two (2) H11 4-Pin DT Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Type X:

  • Two (2) Type X Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Ram Horizontal:

  • Two (2) Ram Horizontal Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

Ram Vertical:

  • Two (2) Ram Vertical Brackets
  • Two (2) 9006 DT 2-Pin Adapters
  • Two (2) 9006 DT 4-Pin Backlight Tap Wire Kit
  • Mounting Hardware
  • Mounting Guide

NOTE: The kit does not include the front bezels.

The standard hardware below is used for Mounting Kits Type A, B, GM, M, MS, SD, and SDX. Hardware may vary for other kit types:

  • Two (2) HW0054 Nut Nylon Lock 10-32 18-8 SS (McMaster: 91831A411)
  • Two (2) HW0055 Washer #10 18-8 SS (McMaster: 92141A011)
  • Two (2) HW0069 Screw 10-32x1/2 Socket Head 18-8 SS (McMaster: 92196A269)
Warranty: 8 year warranty
Return Policy: 30-day Return with no restocking fee
100% Satisfaction Guarantee

Fitment

NOTE: This kit does NOT include an SS3 bezel. If you require a replacement bezel, click here.

These brackets are a direct swap for the fog lights on a wide variety of vehicles. Click here to view a full list of known fitments.

Specifications

Connector(s): OEM-Size Plug and Play, Deutsch DT Input

What's Included

100% Satisfaction Guarantee

Installation

Mounting Guide:

Installation Time: 20-30 minutes

Tools Needed: Basic Toolset

Modification: None

Warranty

8 Year Limited Warranty
In addition to our standard 3 Year replacement warranty, this product carries an additional 5 years of protection against manufacturing defect, for a total of 8 years of warranty coverage. Click here to learn more.
