Features
- Fits many 4” x 6” lamp applications. Actual halo size: 5.3” x 3.5”
- Proprietary durable phosphor coating, for uniform solid appearance
- Extremely bright, high-density LEDs that are visible even in direct sunlight
- Installation does require opening factory headlamps
- Engineered and assembled in USA
Overview

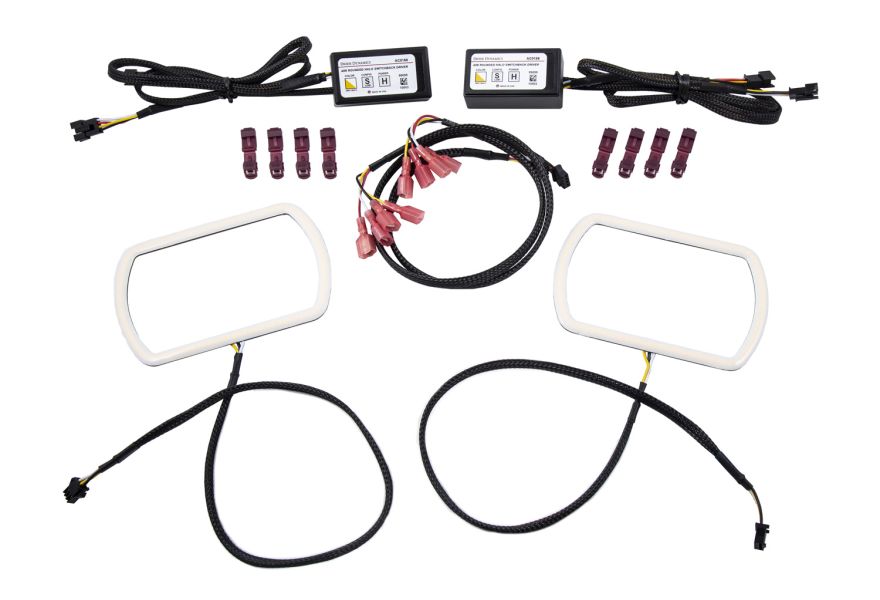

HDHalo Technology. These rounded rectangle LED halos have been designed from the ground-up to be absolutely the brightest, most reliable halos physically possible. Each halo is populated with a large number of high-density (HD) LEDs, which are then coated by a diffusing gel, resulting in a perfectly uniform light when turned on. When off, the diffusing gel hides the chips, resulting in a clean, OEM appearance.
Wiring: All wires have a durable braided wire covering. The LED has a 20-inch wire with female JST type connector. This connector may be de-pinned in order to run wires through small holes during installation. Both the input and output wire on the driver are also 20 inches each. A pigtail is included that is also 20 inches, with male spade connectors on the end to connect to factory wiring with included T-taps. You will have plenty of room to run wires anywhere you'd like.
PWM Control: Aside from the high brightness and perfectly uniform output, one great feature of these halos is the integrated multifunction PWM dimming control. The drivers have four wires, to be connected to any 12V signals as follows:
White: White Low Power, 50% brightness
Red: White High Power, 100% brightness
Yellow: Amber Signal, double brightness, flashing (dims if powered more than two seconds)
Black: Ground
Experience. After over a decade in business, Diode Dynamics is the most trusted name in automotive LED lighting. Unlike every other LED distributor, we assemble and engineer products ourselves in the United States, for high quality and fast time-to-market of the newest and brightest LED technologies. We pride ourselves in offering only quality LED products, that will exceed your expectations. Please contact us if you'd like to discuss your lighting project!
Warranty
3 Year Replacement Limited Warranty
All Diode Dynamics products come with a 3 Year Worry-Free Warranty.
If you experience any defect with a product, we will do some quick troubleshooting, and if necessary, provide a replacement. There is no need to wait for a return and repair process. Click here to learn more.
